fun to build and fly
Djinn F25 SP
MSRP $68.00
Direct orders from our website are $50
Once the product is available through regional distributors, the retail price will be standardized at $68
Once the product is available through regional distributors, the retail price will be standardized at $68
Weight 57.2g* Wheel Base 128mm Frame Type Sqaushed X Stack Mounting 20x20mm (M2/M3) Camera Size DJI O4 Pro Motor Mounting 9x9mm (M2) Vtx Mounting 20x20(M2)/ 25.5x25.5(M2) Support Prop Max 2.5inch Standoff Height 20/25mm
*The theoretical value may deviate slightly from the actual value, including the camera plate and stack screw.
Carbon Fiber
- Top Plate 2mm x1
- Top Cover Plate 2mm x1
- Front Plate 2mm x1
- Rear Plate 2mm x1
- Lock Plate 2mm x1
- Arm 3mm x4
Hardware
- M2x4 Socket Head -4/pcs
- M2x6 Countersunk -5/pcs
- M2x6 Socket Head -6/pcs
- M2x8 Socket Head -2/pcs
- M2x5 Button Head -16/pcs
- M2x22 Countersunk -4/pcs
- M3x6 Countersunk -2/pcs
- M3x8 Countersunk -2/pcs
- M3x8 Countersunk -4/pcs
- M3x12 Countersunk -4/pcs

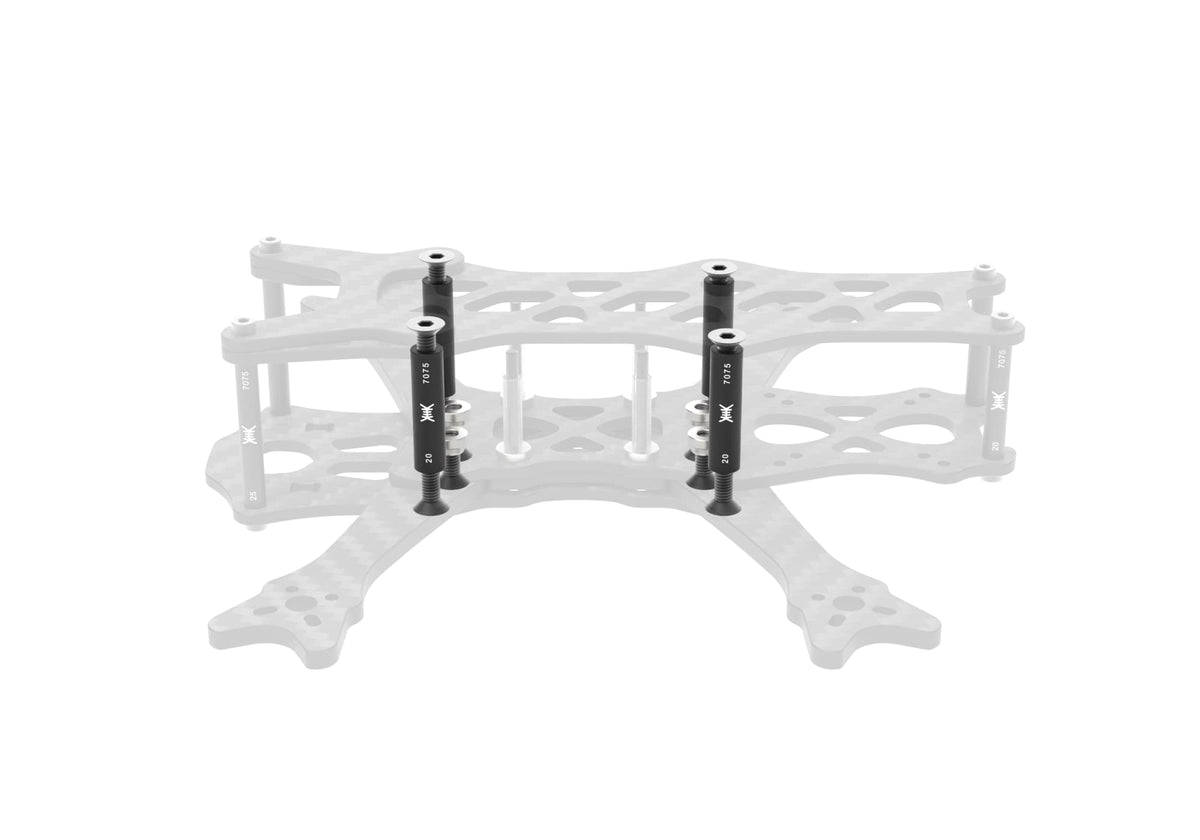

- M2x20 7075 Standoff - 2/pcs
- M2x25 7075 Standoff - 2/pcs
- M3x20 7075 Standoff - 4/pcs
- Profiled Spacer 2 - 4/pcs
Accessories
- TPU Side Plate x2
- TPU Capacitor Mount x1
- TPU Antenna Mount x1
- TPU M2 Nut x4
- Rubycon 35v270uF ZLH x1
- HSA Tube x1
- M2 Rubber Spacer x20
- Battery Pad x1
- Battery Strap x1
- Backup Screw Pack x1
Flight Controller 20x20 Mounting Hole ESC At least 25A Motor 4S: 1404 4500-5000kv
6S: 1404 2900-3300kv Prop HQ DT63MMX4
HQ TR2.5X2.5X3
GF 2520-3 Battery 4S 650-950mah
6S 550-650mah
United States & Canada
- ePacket : $10
- DHL Express : $30
Europe
- ePacket : $10
- DHL Express : $30
Australia & New Zealand
- ePacket : $10
- DHL Express : $30
Other Countries
- ePacket : $15
- DHL Express : $30
Shipping Methods
- ePacket — Economy tracked shipping.
- DHL Express — Fast express delivery with full tracking.
Notes
- Select DHL Express for the fastest delivery. One free extra spare arm is included with each frame.
- Shipping methods available may vary by destination.
- If DHL Express is unavailable for your destination, we may use EMS instead.
- All packages are shipped from Taiwan.
For full shipping terms and details, please see our Shipping Policy .
„Ich bin keine tote Katze. Ich bin ein Dschinn.“
Der Djinn F25 hat sich schon immer von der Masse abgehoben. Er wurde nicht entwickelt, um Trends zu folgen, sondern um zu beweisen, dass Geometrie und Balance die einzig wirklich wichtigen Kriterien sind. Der Djinn F25 SP ist die nächste Evolutionsstufe dieser Philosophie und wurde speziell für die nahtlose Integration mit der DJI O4 Pro Air Unit entwickelt.
Wir haben die agilen Flugeigenschaften der F25-Legende beibehalten und gleichzeitig wichtige Strukturelemente für die O4 Pro optimiert. Unnötige Variablen wurden eliminiert, um Balance, Steifigkeit und gleichbleibende Einstellbarkeit zu gewährleisten. Piloten, die Wert auf Vorhersagbarkeit und Kontrolle legen, erhalten mit der Djinn F25 SP eine Leistung, die auch in Zukunft konstant bleibt.
Präzisions-Zweiachsen-Montagesystem
Unsere neue Montagearchitektur wurde exklusiv für den O4 Pro entwickelt und löst die Herausforderung der kompakten Integration, ohne dabei die Winkel einzuschränken.
- Optimale Ausgangsposition: Die Linse befindet sich in einem getesteten 15°-Winkel am hinteren Ende der Verfahrschiene, um eine perfekte Schwerpunktverteilung zu gewährleisten.
- Vielseitiger Einstellbereich: Ein Doppelgelenkmechanismus ermöglicht eine stufenlose Aufwärtsverstellung bis zu 35° und eine kontrollierte Abwärtsneigung bis zu 0° .
- Flaches Profil: Diese Konfiguration minimiert die Linsenverschiebung während der Rotation, hält die Rahmenhöhe niedrig und gewährleistet eine reibungslose, kompakte Bauweise ohne gegenseitige Beeinträchtigung der Komponenten.
Wichtigste Leistungsmerkmale
- Sicht ohne Hindernisse: Die berechnete Geometrie stellt sicher, dass weder Requisiten noch Rahmenstrukturen in Ihr O4 Pro-Bild gelangen, selbst bei flachen Winkeln.
- O4 Pro Optimierung: Jede Kurve und jede Abstandsposition wurde optimiert, um die O4 Pro-Einheit aufzunehmen und gleichzeitig ein ausgewogenes Schub-Gewichts-Verhältnis zu gewährleisten.
- Verstärktes, abnehmbares Verdeck: Eine neu gestaltete Verdeckkonstruktion maximiert die Haltbarkeit bei Bando-Runs und bietet gleichzeitig die Möglichkeit, Gewicht für ultraleichte Konfigurationen einzusparen.
- Sauberes Elektronik-Layout: Erweiterter Freiraum speziell für Kondensatoren und Verkabelung gewährleistet eine problemlose und saubere Installation.
- Vorhersehbare Dynamik: Entwickelt für Windwiderstand und optimale Stabilität, bietet es ein sicheres Fluggefühl, auf das sich Piloten auch unter anspruchsvollen Bedingungen verlassen können.
Der Djinn F25 SP ist nicht nur ein Update;
Es handelt sich um eine speziell für filmische Präzision entwickelte Plattform.
Djinn F25 SP
Angebot$50.00 USD
Optionen auswählen
Djinn F25 SP
Angebot$50.00 USD
Clear FPV Vision
Nothing in the way.
The camera stays clear of the props and frame, even at low and high camera angles. Your FPV feed stays clean, with nothing in the way.
C-Lock T2
One-screw arm replacement
Remove a single screw to replace an arm. The C-Lock T2 joint keeps the arm tightly seated, without unwanted play.
Capacitor Setup
Dedicated TPU Capacitor Mount
The included 35V 270µF low-ESR capacitor fits into a matching TPU mount, keeping the installation secure and tidy.
Hybrid Screw Assembly
HSA
HSA uses M2 stack screws as standard and supports M3 mounting holes with matching adapter sleeves. Install the stack you need without changing the frame.
Dual-Axis Camera Mount
Secure mounting, adjustable angle
The mount keeps the O4 Pro camera firmly in place while allowing angle adjustments from 0° to 35°.
Optional DJI O4 Pro Accessory
Fixed-Angle Cam Shell
Available in 20°, 25°, and 30°, the Cam Shell keeps your camera angle consistent and helps protect the lens during impacts. Its open design keeps the FPV view clear.
Note: Sold separately.
3D Print Ready Official STL Support
We designed a comprehensive protection suite for this frame. Pick up the official TPU kit from our store, or access the free file library to print replacements on demand.
Verwenden Sie die Pfeiltasten links und rechts, um zwischen Vorher- und Nachher-Fotos zu navigieren.
Frequently Asked Questions
The Djinn F25 SP supports O4 Pro camera with two mounting solutions:
- Standard "Cam Plates" (Adjustable Angle): Included in the base package. This kit allows you to adjust the camera angle to your preference. Note: The matching "Front Bumper" for this setup is sold separately.
- Optional "Cam Shell" (Fixed Angle): Specifically designed for the O4 Pro. It features a fixed camera angle and an integrated bumper design, so no additional Front Bumper is required.
Please note: If you purchase the Cam Shell accessory, your package will still include the standard adjustable Cam Plates.
The standard package includes the carbon fiber frame, all mounting hardware (screws/standoffs) for your electronics (Stack/Motor/VTX), the Cam Plates, and a basic antenna mount(tube-mount style).
If you need extra protection, accessories like the Cam Shell, Front Bumper, or Arm Guards must be purchased separately. Please note that Dark Green is the only available color for all our TPU components.
Flight Stack:
We highly recommend using a 20x20mm Stack. The frame geometry is specifically optimized for this mounting pattern.
- Note on 25.5x25.5mm AIO: We strongly discourage using AIO boards. Installing an AIO requires an adapter and shorter stack screws, which complicates the build process and may compromise structural integrity and mounting security. For the best experience and reliability, please stick with a 20x20mm stack.
Motors:
1404 size motors are the ideal choice for this frame. While the frame can physically accommodate larger motors, the performance gains are negligible and the added weight will negatively impact flight efficiency. 1404 motors provide the perfect balance of power and weight for the Djinn F25 SP.
Customer Reviews
Overall rating: 4.9 / 5 from 53 reviews.
😊
My new favorite frame I made a 6s one now I wanna build another
Nice kit and well made.
I enjoyed building it and i enjoy even more flying it. Great little drone.
This 2.5” rips! Very fun to fly! I highly recommend this frame kit. Tmotor pacer 1604 3800kv Speedybee 35A stack Flywoo 04 wide angle air unit Gemfan 2512
Great Product. Took a little time to get here but it was well worth the wait. This thing Rips.
I have djinn 25 and siren f35, both are my favorite builds and yes i have build dozens of quads from small whoops to 10 inch longrange. the sweet spot now adays seems to be 2.5 to 4 inch drones and both of these fit the bill. oh ps some of my best flyers. both have flywoo 20x20 f722 stacks 1404 4000k on djinn 2004 3000k on f35 both have dji 04 pro both are 4s and i run a 1350ma on f35 ; 650ma on djinn both get upto 6 minutes of flight time, cruising
I’m running a Goku H743 stack ,04 pro, beeper, AOS 1404 4000kv motors on tattu 4s 850. Can easily get 3-4mins of going hard. I got it set up smooth and flowy under half throttle. After half it feels like a CR500 hitting powerband. It pulls harder than my 5 inch. The frame is really dialed only way I can describe it. Its quality shows throughout the build and into the flight. I Def recommend these motors on the Djinn. They look awesome and feel’s like they were built for this frame on 4s. A 2.5 drone on 4s with the AOS motors is the perfect combo. It can be flown smooth and quiet but still get the adrenaline going with some more throttle.
Beautiful frame. Great fun to fly!
The way the Quadmula frames come ready to build is the best I've seen. Can't wait to get this Lil beast in the air.
Perfect !!! 👌
Great flying frame! One of my favorites!
Great frame! Building this was really cool! Recommend!
❤️💕❤️💕
Looks absolutely stunning and fly’s like a charm. Shipping take a while to Germany but I love it.
Fun.
Flight pretty good, unexpectedly good 😁 Hovering throttle is about 30% with 1404 3850kv motors. It feels like ‘mini me’ for 5” 🫶
My first Quadmula frame and I love it
Love Quadmula. Their products are always TOP notch!
Compacto y duro. Vuelo súper suave y muy bonito! Me enamore nada mas verlo montado! Además vuela muy fino!
Easy to build, flies great
First build that i enjoy to built and even more love to fly !
Speedybee F405 mini/ESC iFlight Xing 1404 4600kv radiomaster RP4TD dji o4 pro HQProp t2.5x2.5x3 HGLRC mini m10 gps Tinys LED ice blue Tattu 4s 850s really rips love this guy
Frame perfectly made. Very good print quality. Very easy assembly of components. Drone easy to set PiD. I recommend building on 6s and I know what you are writing because I also have a second one on 4s. The only downside is that without modifications it is only possible to mount FC, ESC / AIO 20mm x 20mm. Very good quality battery straps, unfortunately ideal only for 6s lipo.
looks good and look forward with joy to build it
I am very pleased with the assembly, everything is super, thank you
This is my 5th Quadmula build and my 3rd Djinn frame. Another absolutely killer frame. I love the new mounting solutions for the O4. As always solid build quality and those little attentions to details, like TPU spacers for the bolts or extra top plate for crash resistance, that make Quadmula one of the best frame manufacturers in the market today.
Love the Quadmulla frame! Easy to build and install the new DJI O4 Pro air unit.
Beautifully made, a pleasure to build. Fast shipping, well packaged. I like it so much I ordered a Siren 3" frame.
the frame is very good but also quite heavy for this size! I still love him👍🏻
Price above the standards but quality also above the standards
Top frame
great frame very compact
My first Quadmula and I am impressed it flys way better than another quad I have flown near 7 mins flight time 5 mins pushing hard. Defiantly my go to quad for text few years great design and built like a tank and weighs 236g you Guys nailed it many thanks Brent Scotland
The Quadmula Djinn 25 SP frame is fantastic—lightweight, durable, and incredibly easy to tune. While it supports both 4S and 6S setups, I highly recommend going with 4S. The reduced weight significantly improves flight performance, which is crucial for the small 2.5-inch props. Running 6S only adds extra weight without making the quad any more agile. I personally fly the Djinn with a 650mAh 4S battery and stay under 250g takeoff weight, which makes it even more versatile. For motors, the T-Motor 4600KV is an excellent choice. With this setup, the Djinn 25 SP flies exceptionally well—smooth, responsive, and well-balanced. If you’re looking for a top-tier micro frame, this one is definitely worth considering!
My second Quadmula frame, they really are unbeatable on quality. The Djinn is an absolute joy to build and with 1404 4500kv motors, she's an absolute ripper! Rapidly becoming one of my favourite quads ever!
This quad is what i was looking for since i purchased 4 drones in the past and lost them to never be found
Love it!
Very nice quad. Wish it had assembly instructions included to aid with putting it together.
