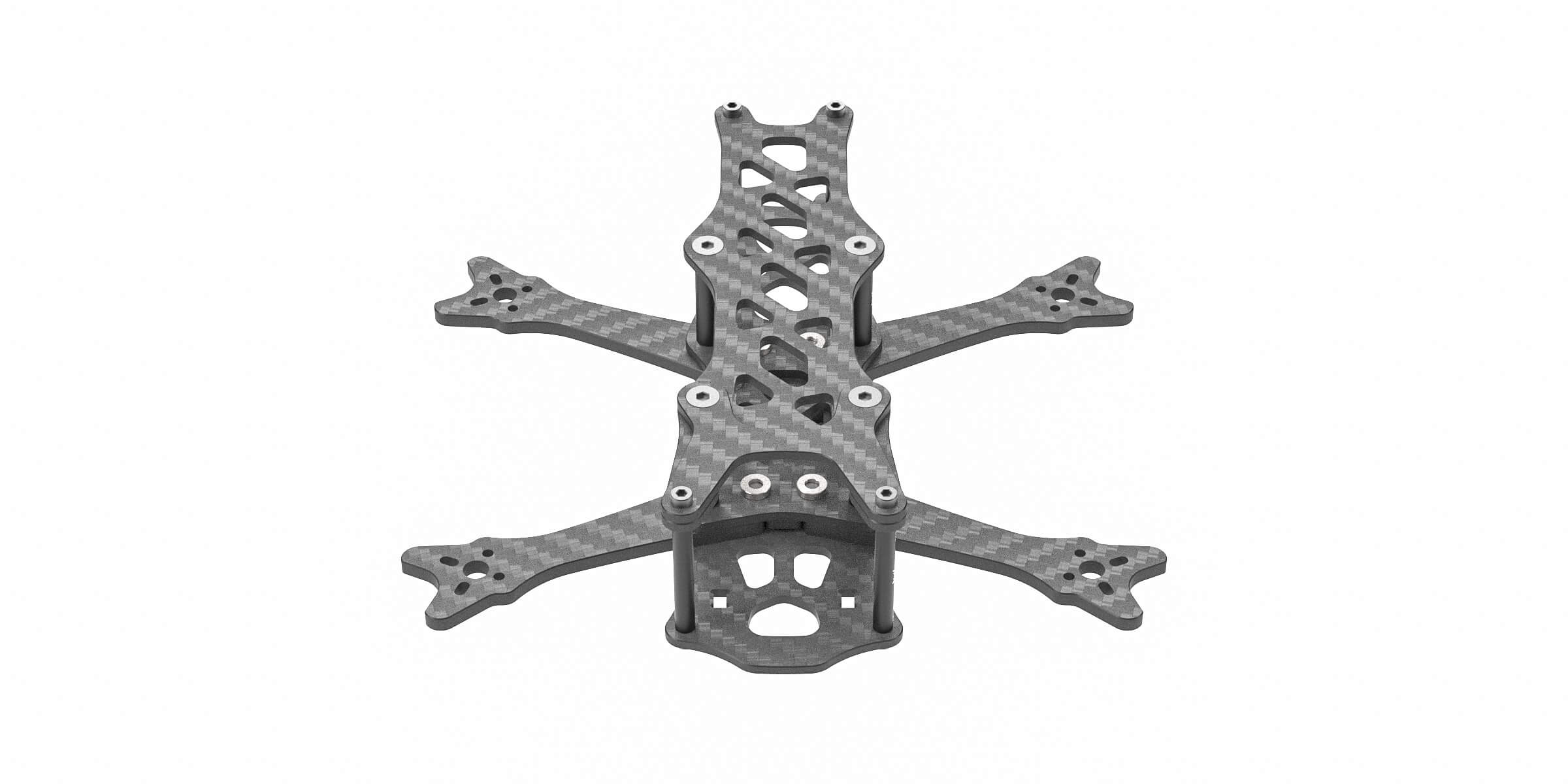

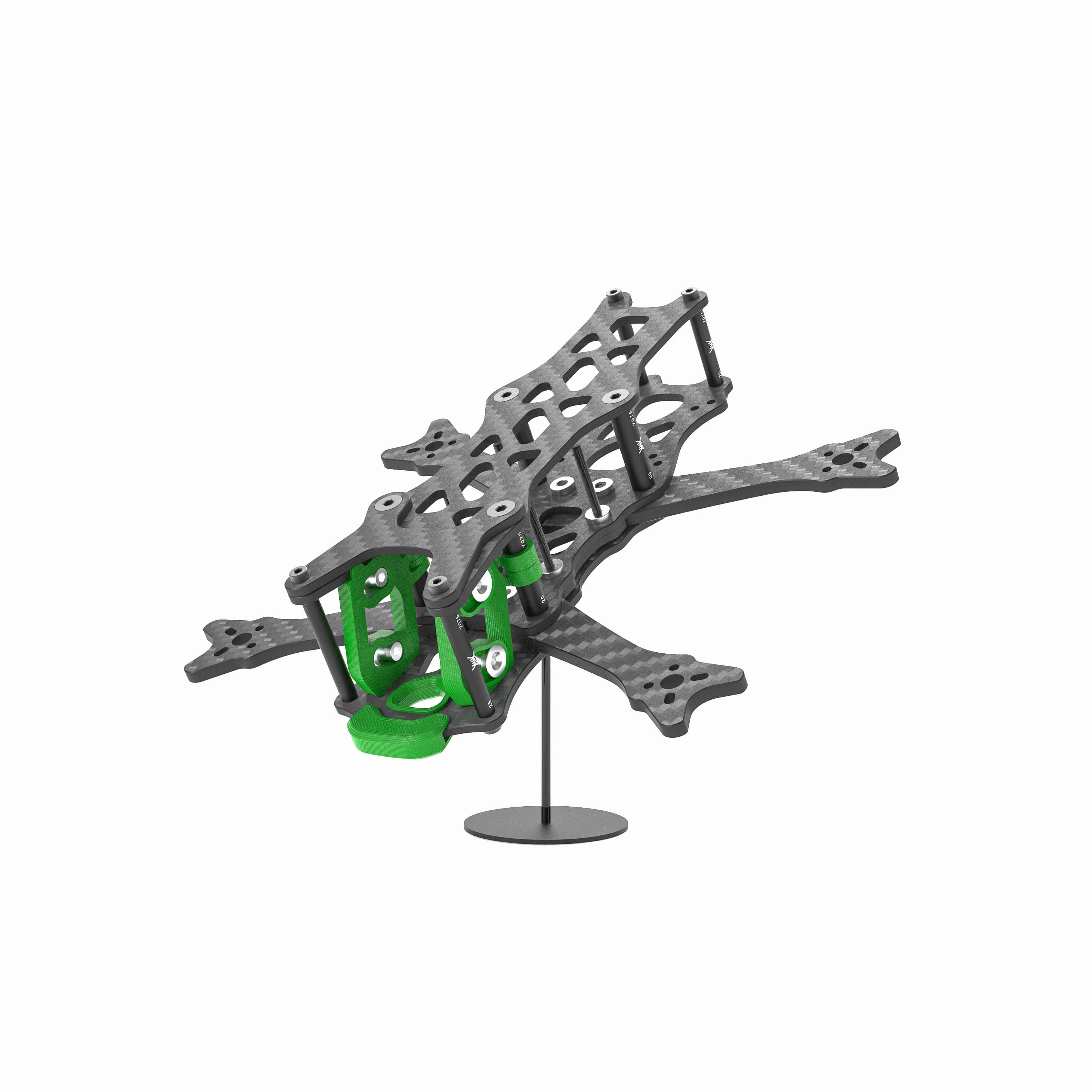

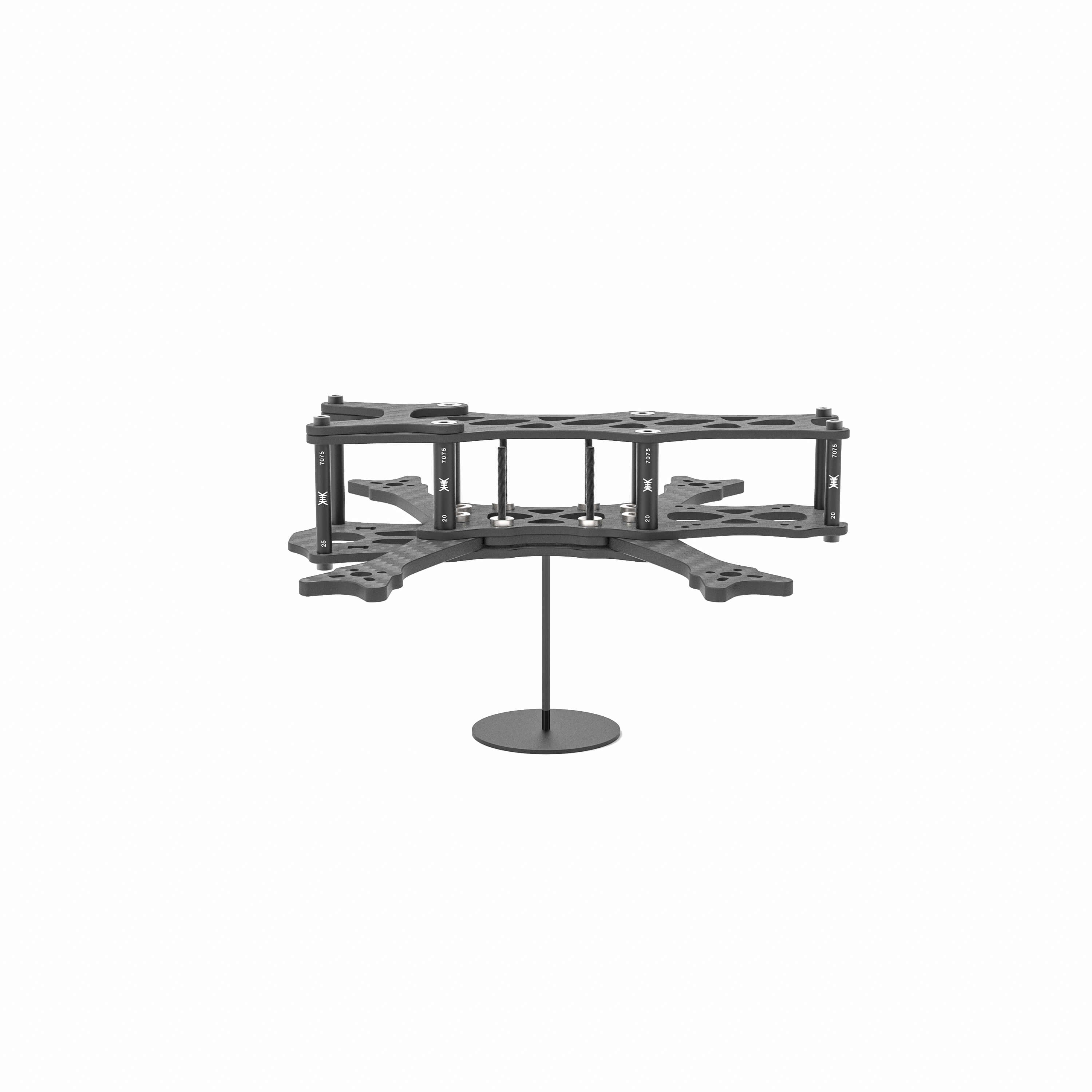

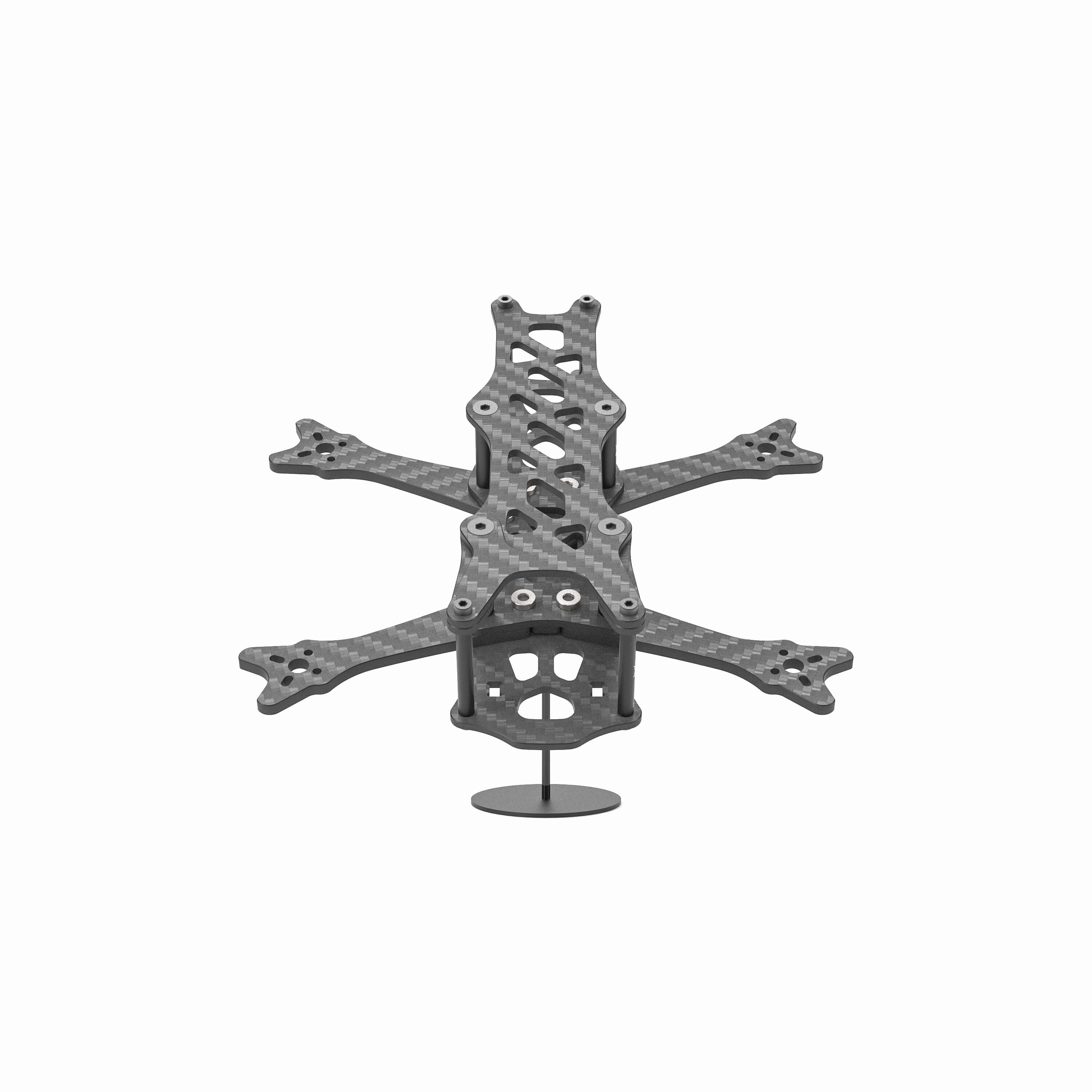

Djinn F25 SP
MSRP $68.00
Once the product is available through regional distributors, the retail price will be standardized at $68
Weight 57.2g* Wheel Base 128mm Frame Type Sqaushed X Stack Mounting 20x20mm (M2/M3) Camera Size DJI O4 Pro Motor Mounting 9x9mm (M2) Vtx Mounting 20x20(M2)/ 25.5x25.5(M2) Support Prop Max 2.5inch Standoff Height 20/25mm
*The theoretical value may deviate slightly from the actual value, including the camera plate and stack screw.
Carbon Fiber
- Top Plate 2mm x1
- Top Cover Plate 2mm x1
- Front Plate 2mm x1
- Rear Plate 2mm x1
- Lock Plate 2mm x1
- Arm 3mm x4
Hardware
- M2x4 Socket Head -4/pcs
- M2x6 Countersunk -5/pcs
- M2x6 Socket Head -6/pcs
- M2x8 Socket Head -2/pcs
- M2x5 Button Head -16/pcs
- M2x22 Countersunk -4/pcs
- M3x6 Countersunk -2/pcs
- M3x8 Countersunk -2/pcs
- M3x8 Countersunk -4/pcs
- M3x12 Countersunk -4/pcs
- M2x20 7075 Standoff - 2/pcs
- M2x25 7075 Standoff - 2/pcs
- M3x20 7075 Standoff - 4/pcs
- Profiled Spacer 2 - 4/pcs
Accessories
- TPU Side Plate x2
- TPU Capacitor Mount x1
- TPU Antenna Mount x1
- TPU M2 Nut x4
- Rubycon 35v270uF ZLH x1
- HSA Tube x1
- M2 Rubber Spacer x20
- Battery Pad x1
- Battery Strap x1
- Backup Screw Pack x1
Flight Controller 20x20 Mounting Hole ESC At least 25A Motor 4S: 1404 4500-5000kv
6S: 1404 2900-3300kv Prop HQ DT63MMX4
HQ TR2.5X2.5X3
GF 2520-3 Battery 4S 650-950mah
6S 550-650mah
United States & Canada
- ePacket: $10
- DHL: $30
Europe
Germany, France, UK, Norway, Sweden, Denmark, Netherlands, Spain
- ePacket: $10
- DHL: $30
Australia & New Zealand
- ePacket: $10
- DHL: $30
Other Countries
- ePacket: $15
- DHL: $30
Notes
- Select DHL Express for the fastest delivery and a free extra spare arm per frame included.
- In some regions, DHL may not be available. We will automatically switch to EMS instead.
- All packages are shipped from Taiwan.
For more detailed information click here
“I ain’t no dead cat. I’m Djinn.”
The Djinn F25 has always stood apart from the crowd. It wasn’t built to follow trends; it was built to prove that geometry and balance are the only metrics that truly matter. The Djinn F25 SP is the next evolution of this philosophy, purpose-built to integrate seamlessly with the DJI O4 Pro Air Unit.
We preserved the agile handling characteristics that define the F25 legacy while refining key structural elements to support the O4 Pro. We eliminated unnecessary variables to ensure that balance, rigidity, and tuning consistency remain uncompromised. For pilots who value predictability and control, the Djinn F25 SP delivers performance that remains consistent—today and tomorrow.
Precision Dual-Axis Mounting System
Engineered exclusively for the O4 Pro, our new mounting architecture solves the challenge of compact integration without sacrificing angles.
- Optimal Baseline: The lens sits at a tested 15° baseline at the rear of the travel rail for perfect center-of-gravity distribution.
- Versatile Range: A dual-pivot mechanism allows smooth upward adjustment to 35° and controlled downward tilt to 0°.
- Low Profile: This configuration minimizes lens displacement during rotation, keeping the frame height low and ensuring zero component interference for a cleaner, tighter build.
Key Performance Characteristics
- Zero-Obstruction Vision: Calculated geometry ensures no props and no frame structure ever enter your O4 Pro feed, even at low angles.
- O4 Pro Optimization: Every curve and standoff position has been refined to accommodate the O4 Pro unit while maintaining a balanced thrust-to-weight ratio.
- Reinforced Removable Top: A redesigned top structure maximizes durability for bando runs while offering the option to shed weight for ultra-light configurations.
- Clean Electronics Layout: Expanded clearance specifically for capacitors and wiring ensures a hassle-free, clean installation.
- Predictable Dynamics: Engineered for wind resistance and tuning stability, providing a "locked-in" feel that pilots can rely on in demanding conditions.
The Djinn F25 SP isn't just an update;
it's a dedicated platform for cinematic precision.
Choose options

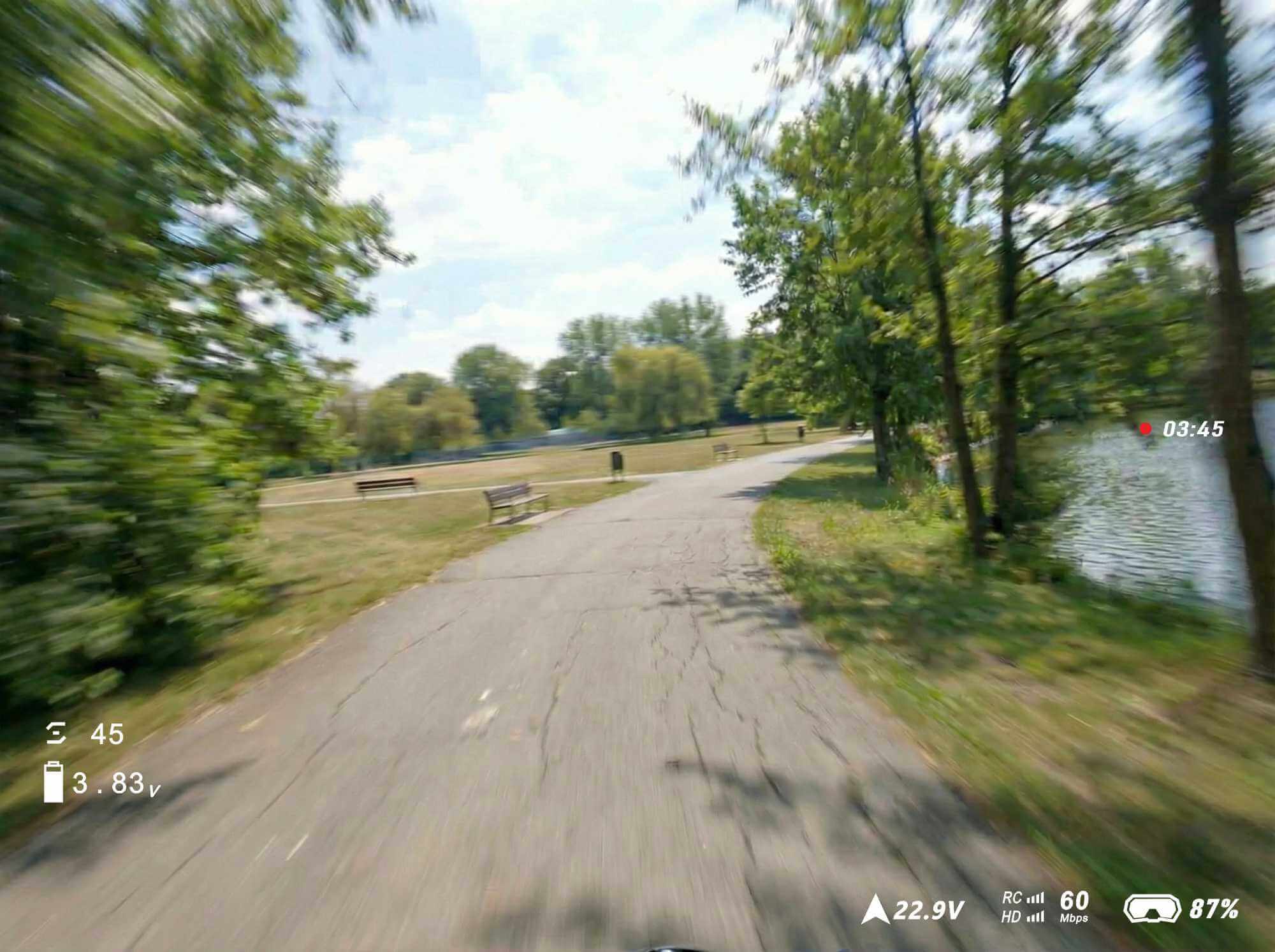

Clear FPV Vision
Nothing in the way.
The camera stays clear of the props and frame, even at low and high camera angles. Your FPV feed stays clean, with nothing in the way.

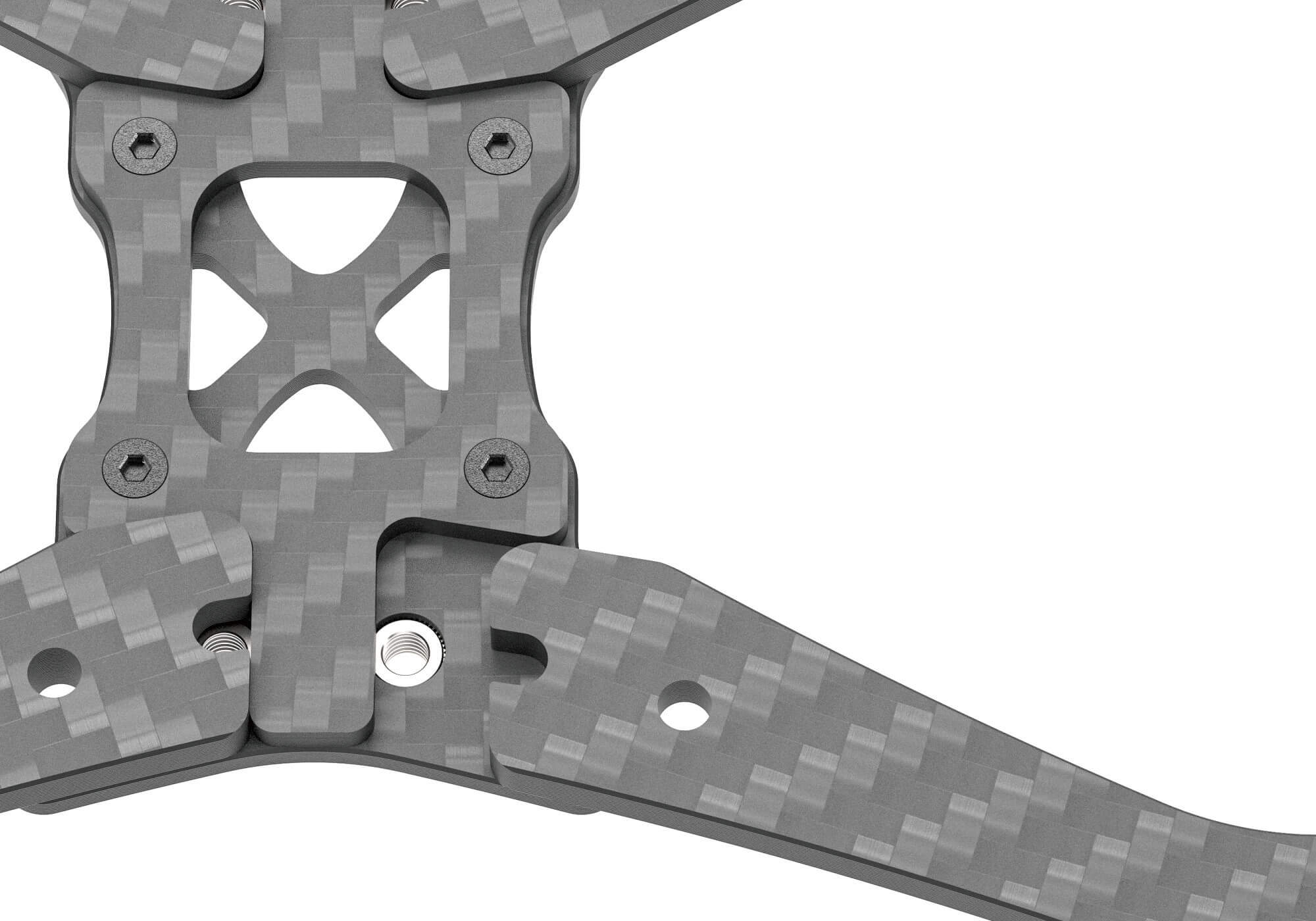

C-Lock T2
One-screw arm replacement
Remove a single screw to replace an arm. The C-Lock T2 joint keeps the arm tightly seated, without unwanted play.

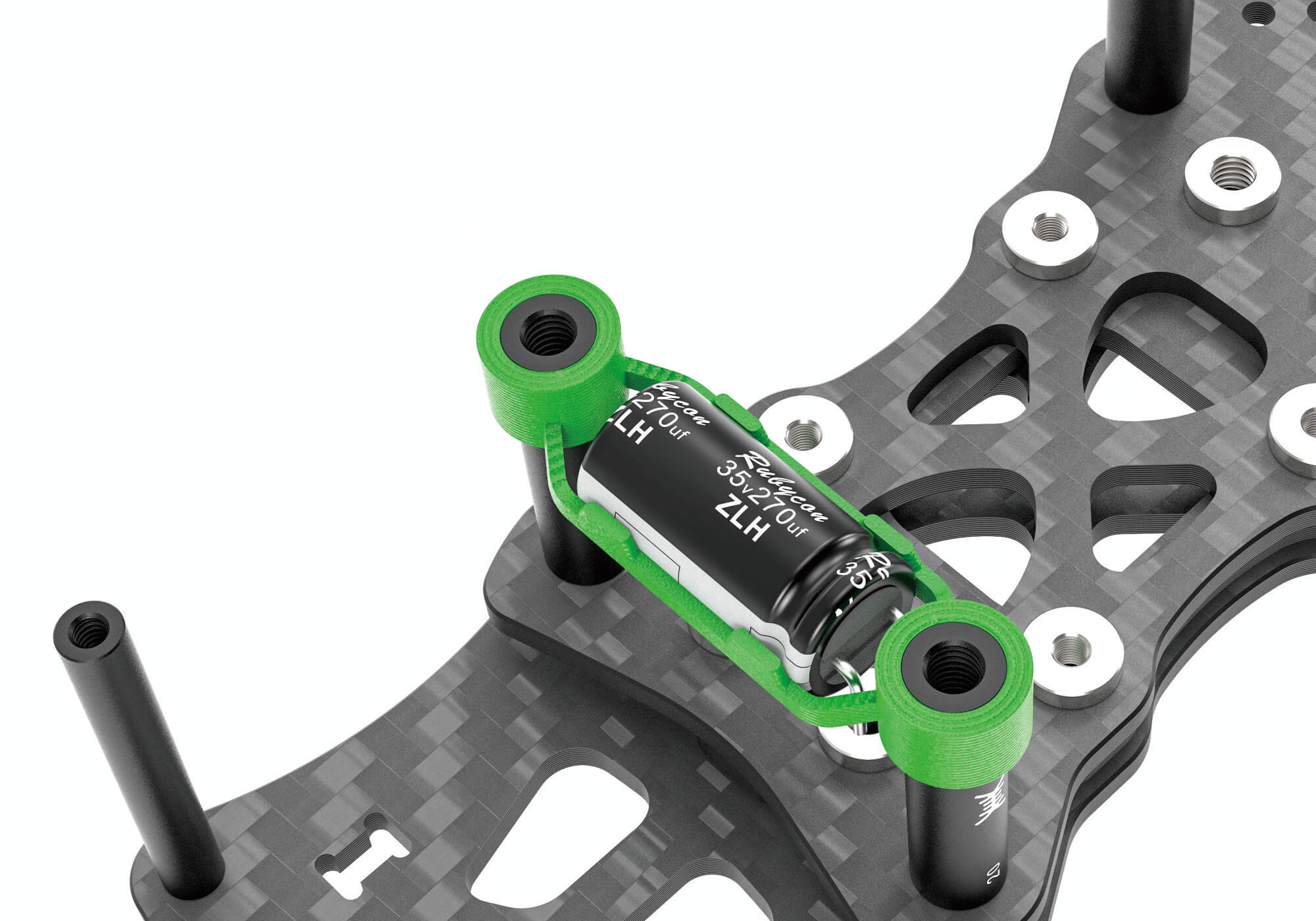

Capacitor Setup
Dedicated TPU Capacitor Mount
The included 35V 270µF low-ESR capacitor fits into a matching TPU mount, keeping the installation secure and tidy.

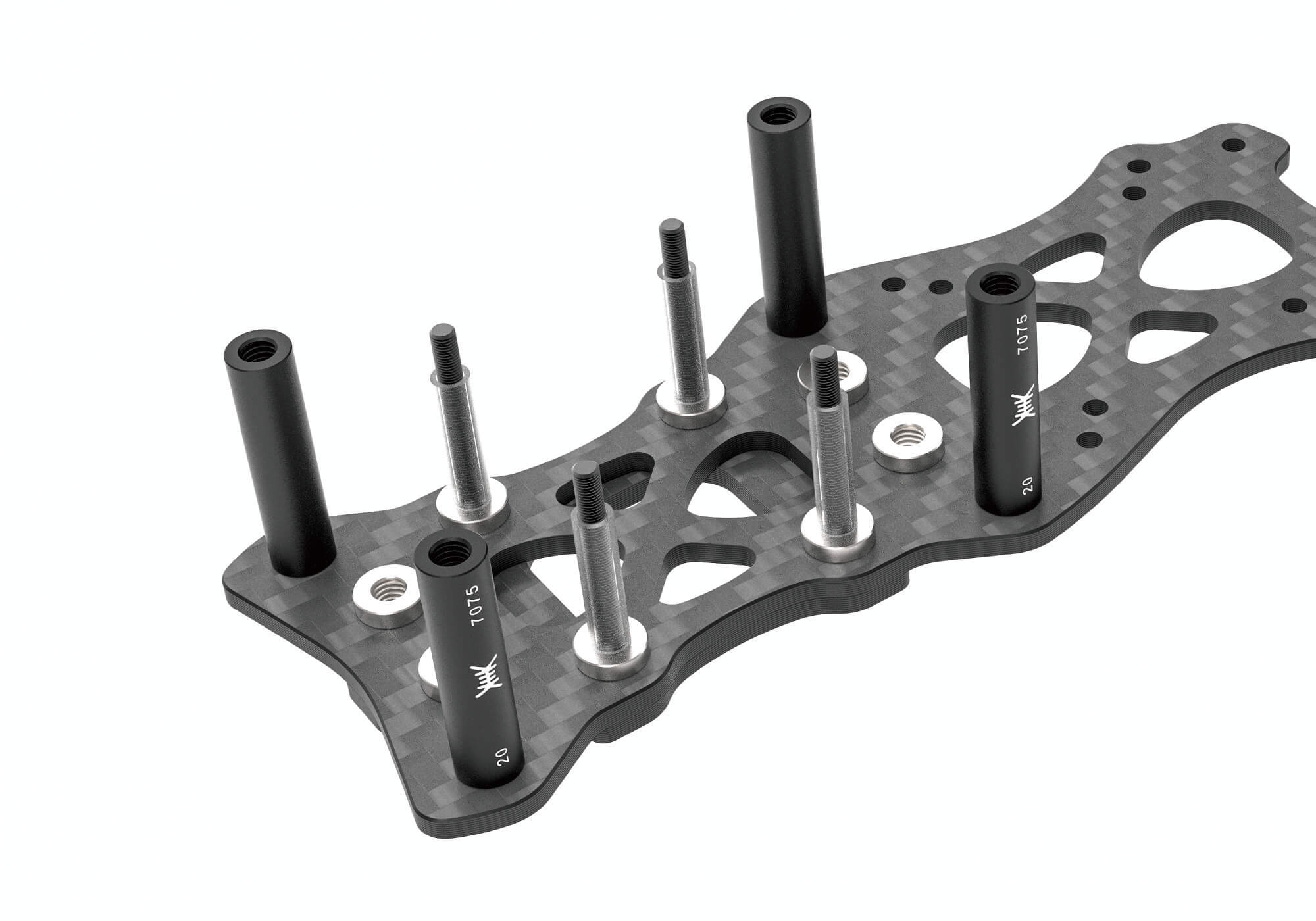

Hybrid Screw Assembly
HSA
HSA uses M2 stack screws as standard and supports M3 mounting holes with matching adapter sleeves. Install the stack you need without changing the frame.

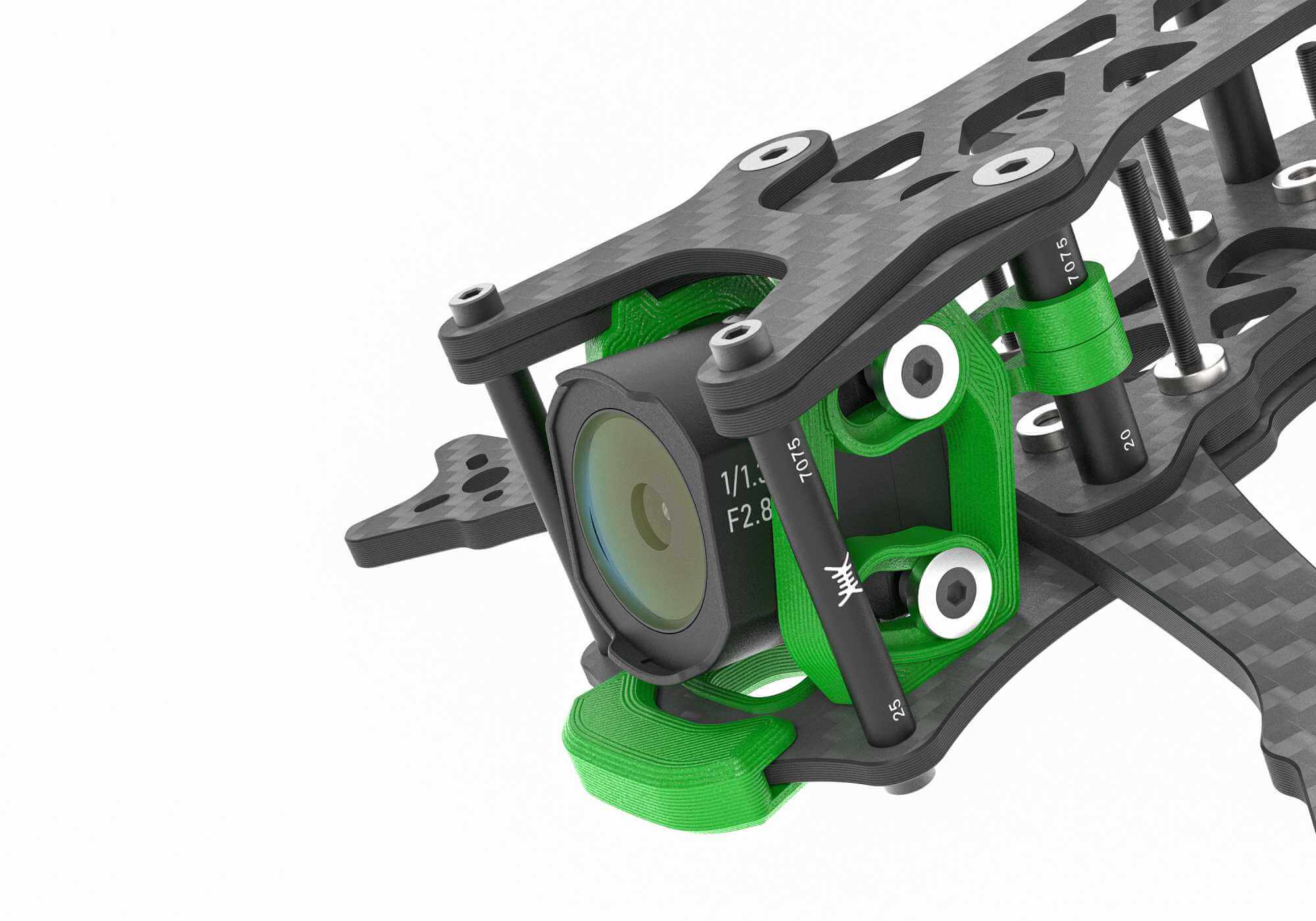

Dual-Axis Camera Mount
Secure mounting, adjustable angle
The mount keeps the O4 Pro camera firmly in place while allowing angle adjustments from 0° to 35°.

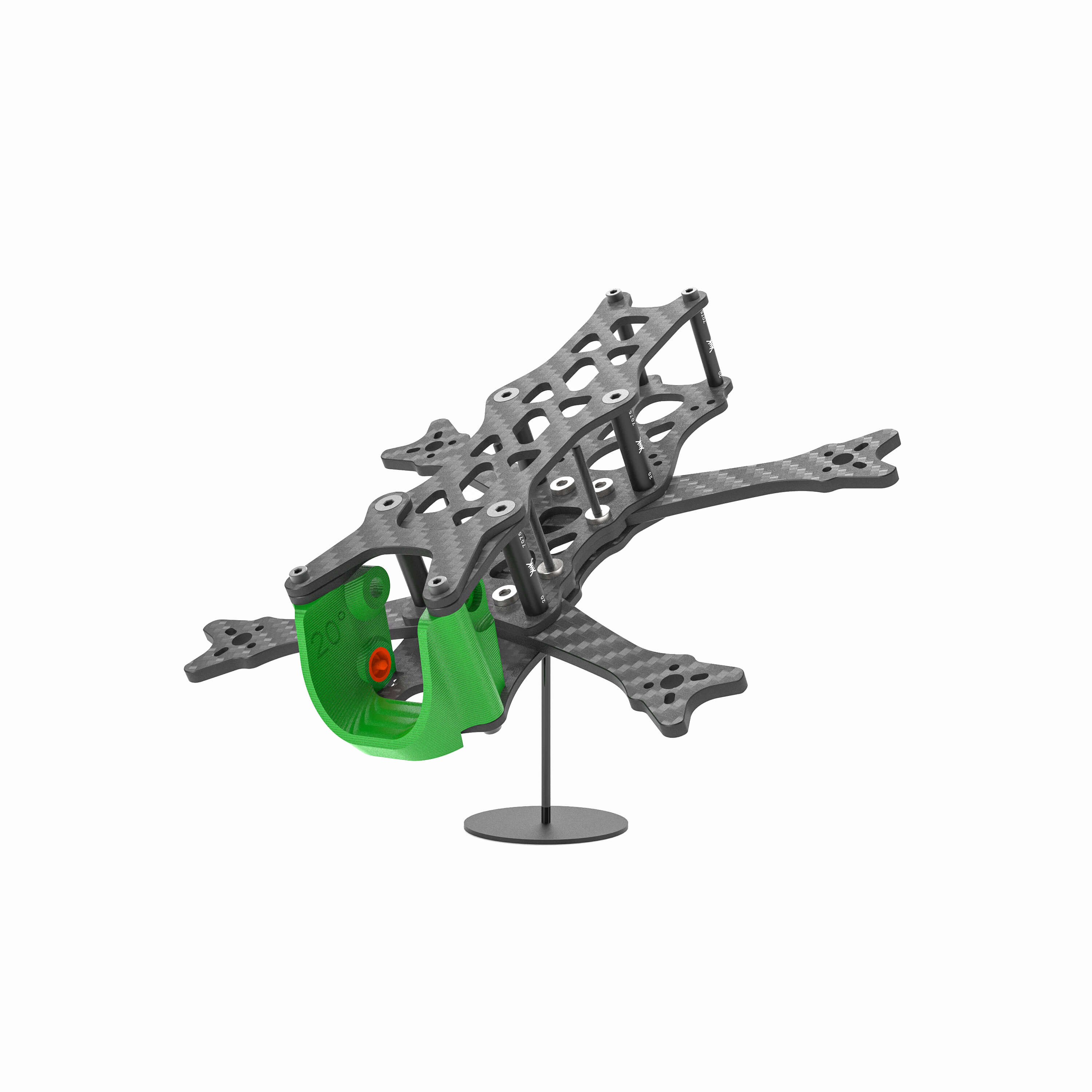

Optional DJI O4 Pro Accessory

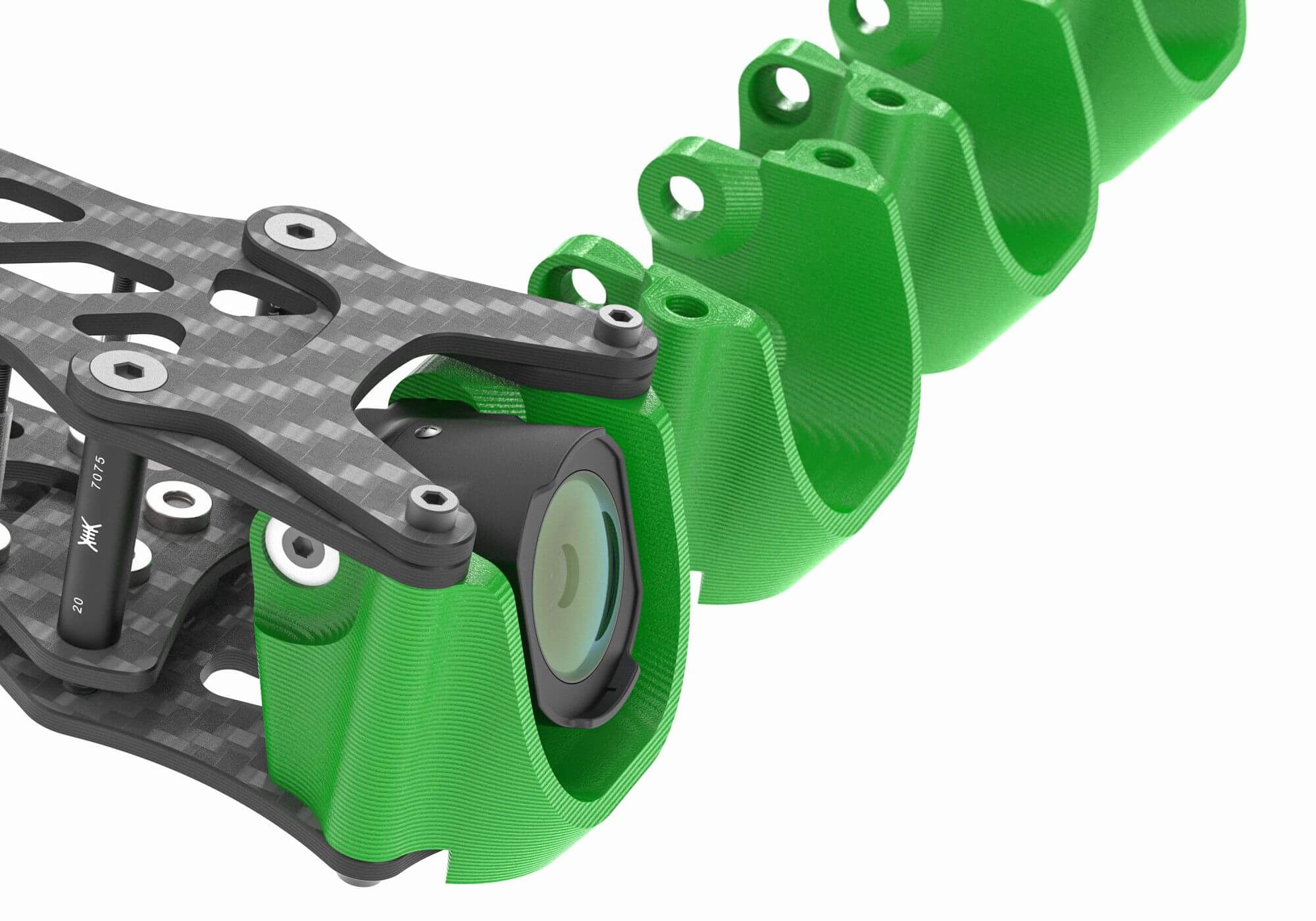

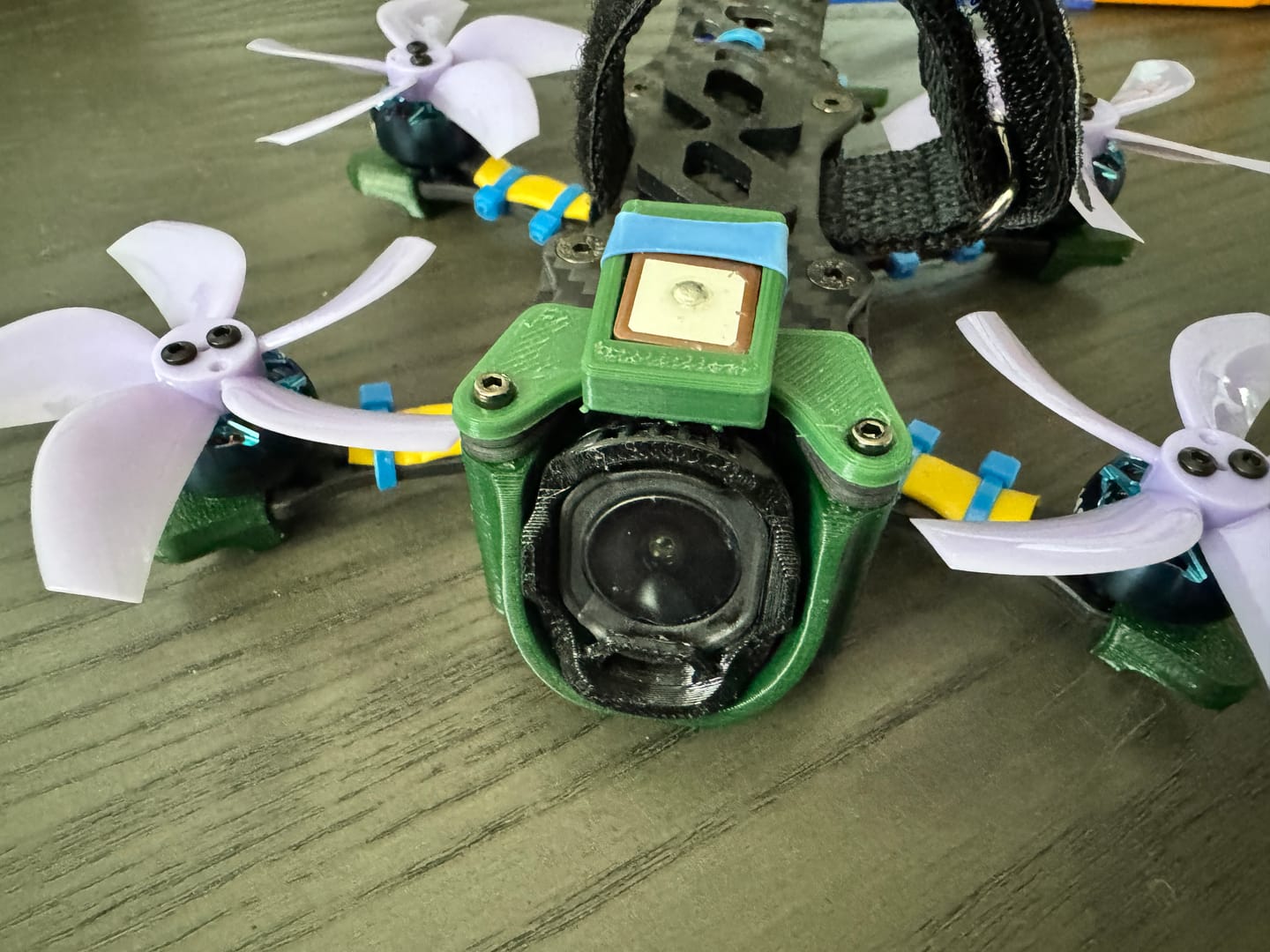

Fixed-Angle Cam Shell
Available in 20°, 25°, and 30°, the Cam Shell keeps your camera angle consistent and helps protect the lens during impacts. Its open design keeps the FPV view clear.
Note: Sold separately.

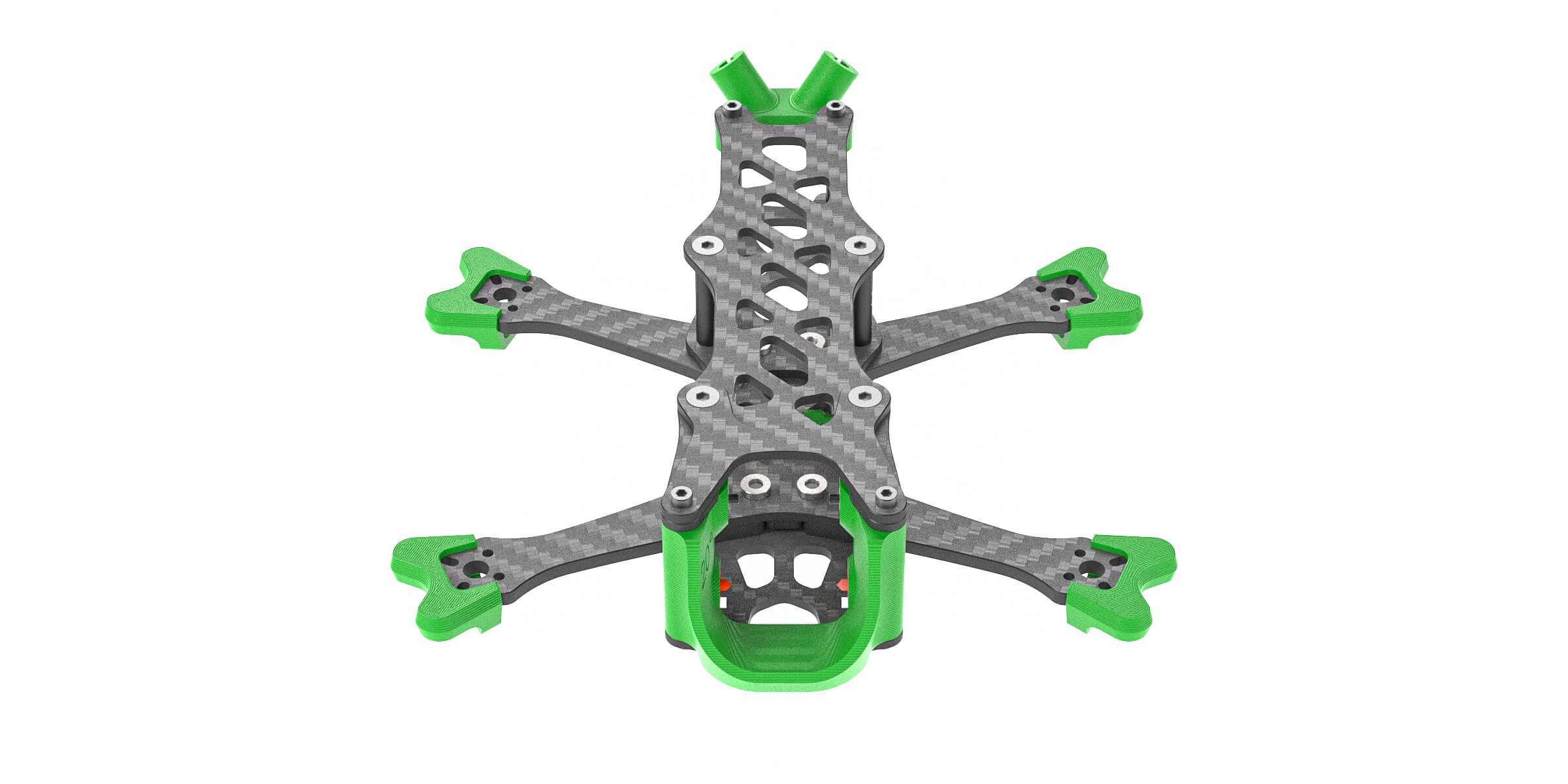

3D Print Ready Official STL Support
We designed a comprehensive protection suite for this frame. Pick up the official TPU kit from our store, or access the free file library to print replacements on demand.
Frequently Asked Questions
The Djinn F25 SP supports O4 Pro camera with two mounting solutions:
- Standard "Cam Plates" (Adjustable Angle): Included in the base package. This kit allows you to adjust the camera angle to your preference. Note: The matching "Front Bumper" for this setup is sold separately.
- Optional "Cam Shell" (Fixed Angle): Specifically designed for the O4 Pro. It features a fixed camera angle and an integrated bumper design, so no additional Front Bumper is required.
Please note: If you purchase the Cam Shell accessory, your package will still include the standard adjustable Cam Plates.
The standard package includes the carbon fiber frame, all mounting hardware (screws/standoffs) for your electronics (Stack/Motor/VTX), the Cam Plates, and a basic antenna mount(tube-mount style).
If you need extra protection, accessories like the Cam Shell, Front Bumper, or Arm Guards must be purchased separately. Please note that Dark Green is the only available color for all our TPU components.
Flight Stack:
We highly recommend using a 20x20mm Stack. The frame geometry is specifically optimized for this mounting pattern.
- Note on 25.5x25.5mm AIO: We strongly discourage using AIO boards. Installing an AIO requires an adapter and shorter stack screws, which complicates the build process and may compromise structural integrity and mounting security. For the best experience and reliability, please stick with a 20x20mm stack.
Motors:
1404 size motors are the ideal choice for this frame. While the frame can physically accommodate larger motors, the performance gains are negligible and the added weight will negatively impact flight efficiency. 1404 motors provide the perfect balance of power and weight for the Djinn F25 SP.
