Siren R5
MSRP $75.00
Once the product is available through regional distributors, the retail price will be standardized at $75
| Weight | 62g |
| Wheel Base | 196mm |
| Frame Type | True X |
| Stack Mounting | 20x20mm (M2/M3) |
| Camera Size | Nano/Micro (14/19mm) |
| Motor Mounting | 16x16mm (M3) |
| Support Prop | Max 5.2inch |
| Standoff Height | 25mm |
| Screw Material | YFS 12.9 Class |
| Standoff / PS-3 Material | 7075 Alloy |
Carbon Fiber
- Top Plate 2mm – 1/pcs
- Mid Plate 2mm – 1/pcs
- Bottom Plate 2mm – 1/pcs
- Center Plate 3mm – 1/pcs
- Side Plate 2mm – 2/pcs
- Arm 5mm – 4/pcs
Hardware
- M2x4 Socket Head -2/pcs
- M2x28 Countersunk -4/pcs
- M3x6 Button Head -4/pcs
- M3x8 Button Head -12/pcs
- M3x10 Countersunk -4/pcs
- M3x12 Countersunk -2/pcs
- M3x14 Countersunk – 4/pcs
- PS-3 Profiled Spacer – 2/pcs
- M3x25 7075 Standoff – 4/pcs
Accessories
- Shark Fin x 1
- TPU Nuts x 4
- Damping Tube x 1set
- Battery Pad x 2
- Battery Strap x 1
- Backup Screw Pack x 1
United States & Canada
- ePacket: $10
- DHL: $30
Europe
Germany, France, UK, Norway, Sweden, Denmark, Netherlands, Spain
- ePacket: $10
- DHL: $30
Australia & New Zealand
- ePacket: $10
- DHL: $30
Other Countries
- ePacket: $15
- DHL: $30
Notes
- Select DHL Express for the fastest delivery and a free extra spare arm per frame included.
- In some regions, DHL may not be available. We will automatically switch to EMS instead.
- All packages are shipped from Taiwan.
For more detailed information click here

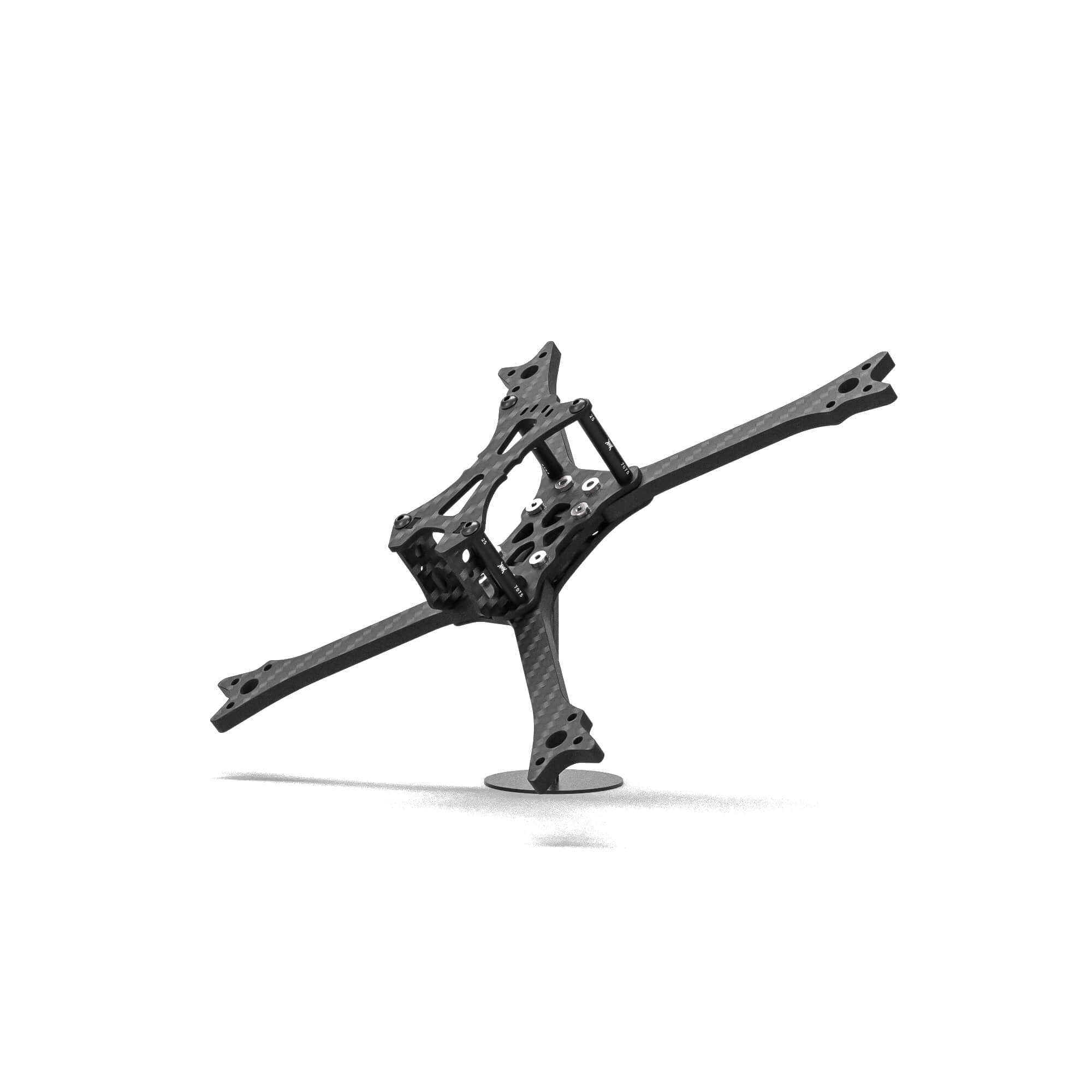

Introducing the QUADMULA SIREN R5 Racing Frame. The SIREN R5 is the first product of QUADMULA and features functionality, lightweight, and durability.
After a year of research and work, we came up with a frame that balances weight and strength in such a compact body. We seek to make the weight of the frame as light as possible on the premise that the durability of the body remains unchanged. Not only meets the needs of competition, but also reduces the loss in the practice process.
To achieve such a compact frame, we design a new structure called “C-Lock”. It makes all of the arms fit more tightly with each other, brings better body stability and can apply more aggressive parameters(less filter) in Betaflight. At the same time, our design also makes the frame easier to assemble.
SIREN R5 uses QUADMULA custom carbon fiber, 7075 aluminum standoff and 12.9 YFS screws, we make the best product.
Apart from the above, for maximum compatibility we also consider the possibility of installing various equipment. SIREN R5 can easily install HDZero Race V2 Vtx or Analog Vtx, camera also can support both 14mm or 19mm, even we reserved a place for a 1000uf 35v capacitor. All to bring you the best installation experience.
QUADMULA SIREN R5 will be the best choice for you.
