Siren F5 Mini Split
| Weight | 91.3g |
| Wheel Base | 218mm |
| Frame Type | Sqaushed X |
| Stack Mounting | 20x20mm (M2/M3) |
| Camera Size | Nano/Micro/DJI (14/19/20mm) |
| Motor Mounting | 16x16mm (M3) |
| Vtx Mounting | 20x20 / 25.5x25.5mm |
| Support Prop | Max 5.2inch |
| Standoff Height | 20/25mm |
| Screw Material | YFS 12.9 Class |
| Standoff / PS-3 Material | 7075 Alloy |
Carbon Fiber
- Top Plate 2mm – 1/pcs
- Rear Plate 2mm – 1/pcs
- Front Plate 2mm – 1/pcs
- Lock Plate 3mm – 1/pcs
- Side Plate 2mm – 2/pcs
- Cam Base Plate 2mm - 1/pcs
- Arm 5mm – 4/pcs
Hardware
- M2x3 – 4/pcs
- M2x22mm – 4/pcs
- M3x6 – 10/pcs
- M3x8 – 18/pcs
- M3x10 – 4/pcs
- M3x12 – 4/pcs
- M3x14 – 4/pcs
- PS-3 Profiled Spacer – 4/pcs
- M3x20 7075 Standoff – 6/pcs
- M3x25 7075 Standoff – 2/pcs
Accessories
- GoPro Base Mount x 1
- Capacitor Set x1
- TPU Nuts x 4
- Damping Tube x 1
- Battery Pad x 1
- Battery Strap x 2
- Backup Screw Pack x 1
United States & Canada
- ePacket: $10
- DHL: $30
Europe
Germany, France, UK, Norway, Sweden, Denmark, Netherlands, Spain
- ePacket: $10
- DHL: $30
Australia & New Zealand
- ePacket: $10
- DHL: $30
Other Countries
- ePacket: $15
- DHL: $30
Notes
- Select DHL Express for the fastest delivery and a free extra spare arm per frame included.
- In some regions, DHL may not be available. We will automatically switch to EMS instead.
For more detailed information click here
The SF5 Mini currently does not support O4 Pro installation. If you plan to use the O4 Pro, we recommend choosing Siren F5 S2

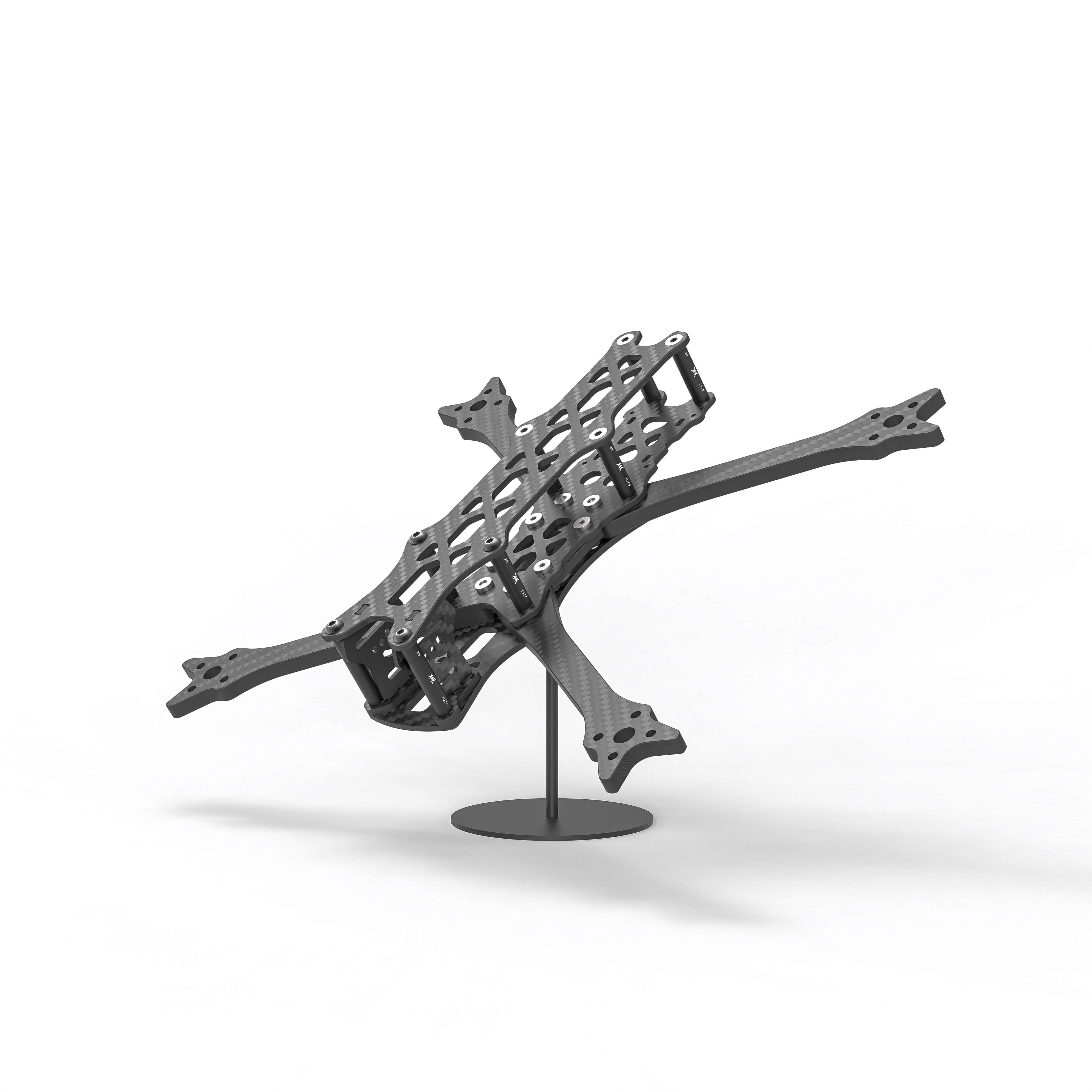

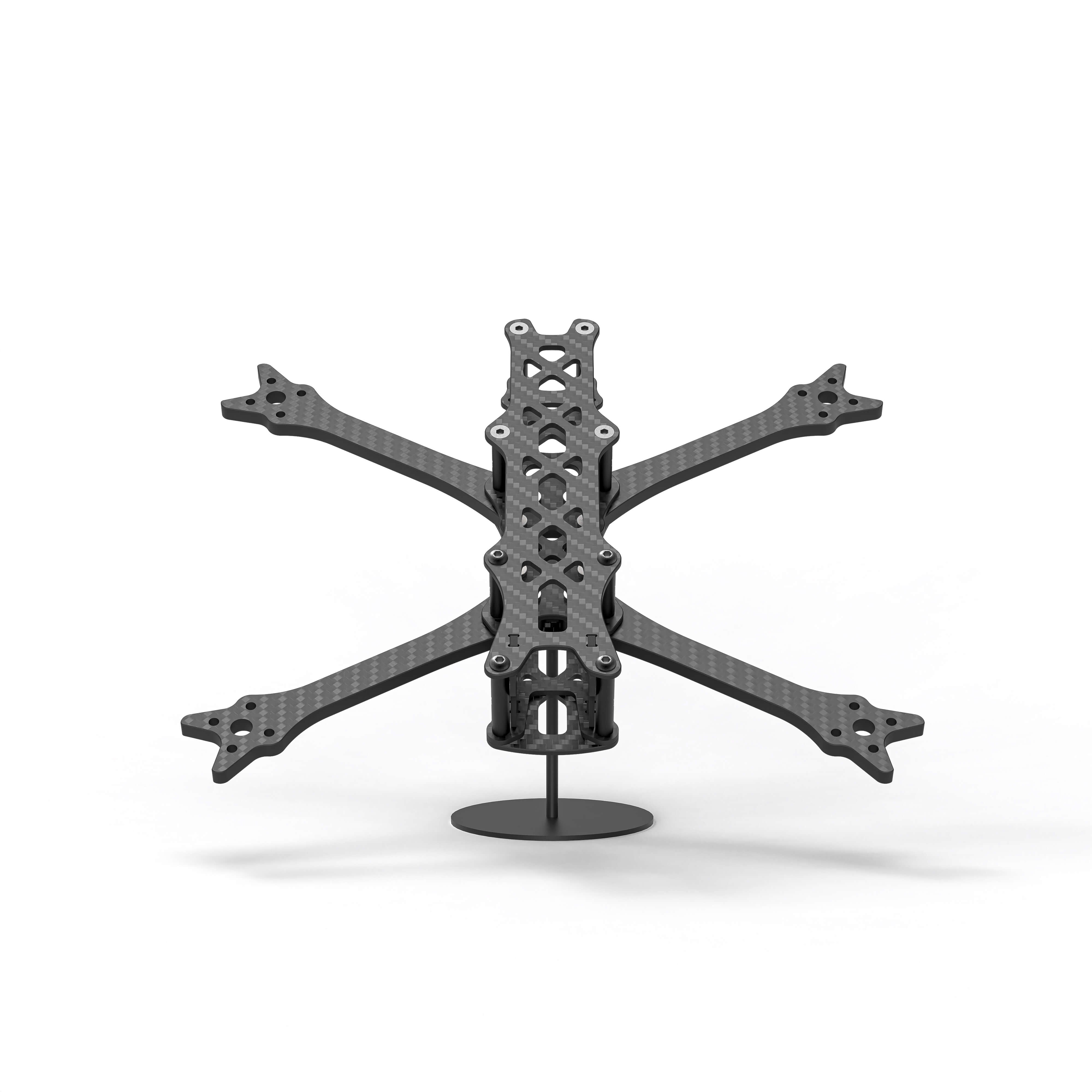

SIREN F5 MINI is a 5" freestyle frame that focuses on a lightweight and compact body. It has a better thrust-to-weight ratio, making the thrust response more agile.
At the initial design, we considered putting the largest blade in the smallest wheelbase that is only 218mm. When installed with 4.9-5.1” props, it can ensure the spacing between props makes it more efficient and more control flexible, the maximum amount even can install 5.2” props.
In the meantime, we use the C-Lock structure which is our most advanced design. You can easily replace the arm by removing only one bolt. It also increases the strength of the frame and makes it easier to tune.
In addition, with QUADMULA PS-3 profiled spacer, the GoPro mount can be fixed more firmly on the top plate. you no longer have to worry about the tightness of screws or crushing the TPU.

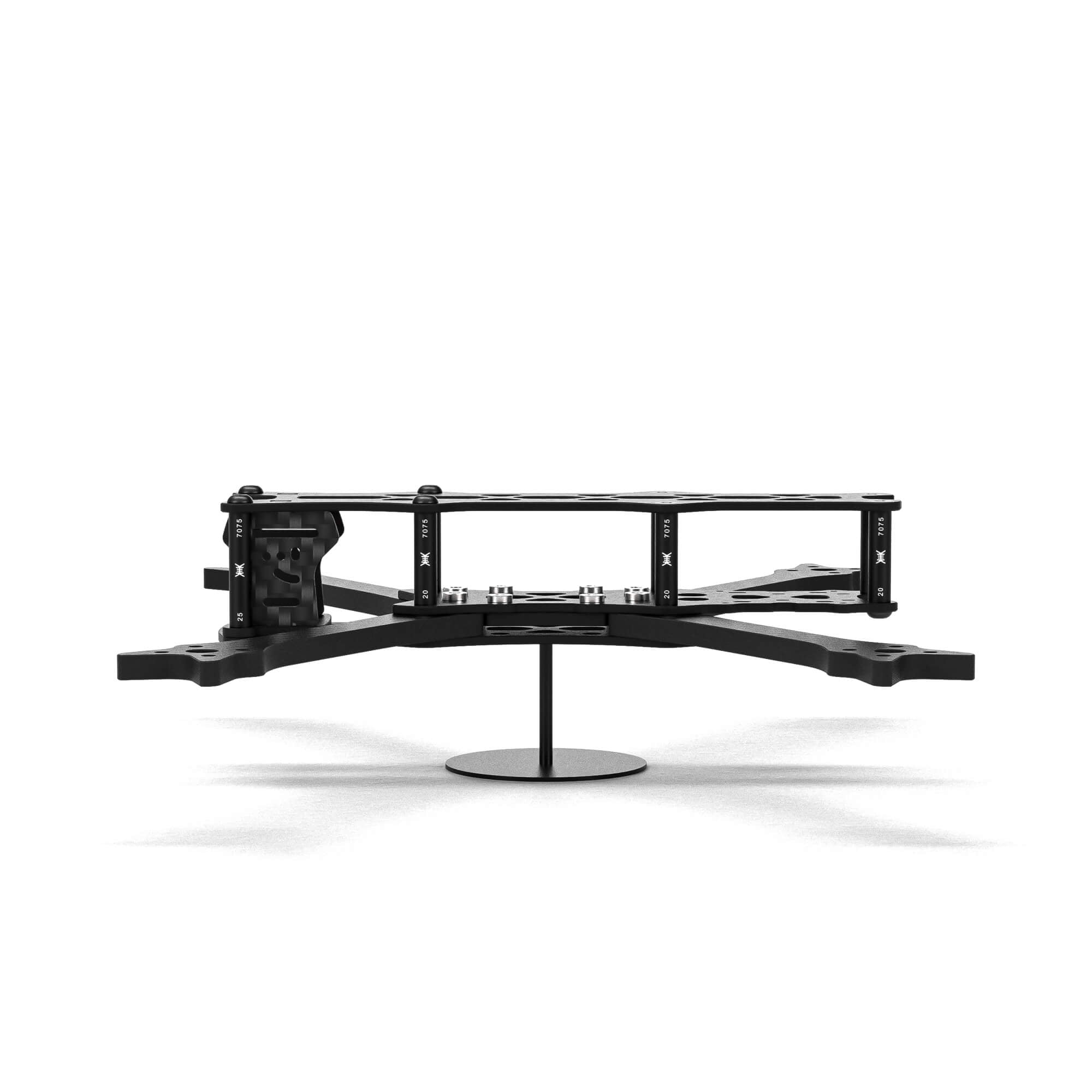

SF5 Mini Split uses a staggered bottom plate design which results in a lower center of gravity, but also requires higher assembly skills.
