Siren F5 Split
Weight 105.5g Wheel Base 233mm Frame Type Sqaushed X Stack Mounting 30.5x30.5mm (M2/M3) Camera Size Nano/Micro/DJI (14/19/20mm) Motor Mounting 16x16mm (M3) Vtx Mounting 20x20(M2) / 25.5x25.5(M1.6)mm Support Prop Max 5.5inch Standoff Height 20/25mm Screw Material YFS 12.9 Class Standoff / PS-3 Material 7075 Alloy
Carbon Fiber
- Top Plate - 2mm x1
- Front Plate - 2mm x1
- Rear Plate - 2mm x1
- Center Plate - 3mm x1
- Arm - 5mm x4
- Cam Base Plate - 2mm x1
Hardware
- M2x6 Countersunk -2/pcs
- M2x22 Countersunk -4/pcs
- M3x6 Button Head -6/pcs
- M3x6 Countersunk -4/pcs
- M3x8 Button Head -18/pcs
- M3x10 Countersunk -4/pcs
- M3x12 Countersunk -4/pcs
- M3x14 Countersunk - 4/pcs
- PS-2 Profiled Spacer - 2/pcs
- PS-3 Profiled Spacer - 4/pcs
- M3x20 7075 Standoff - 6/pcs
- M3x25 7075 Standoff - 2/pcs
Accessories
- TPU Camera Side Plate x2
- TPU Action Cam Mount x1
- TPU Capacitor Mount x1
- TPU Antenna Mount x1
- TPU M2 Nuts x4
- Rubycon 35v1000uF ZLH x2
- Damping Tube x2
- Battery Pad x1
- Battery Strap x2
- Backup Screw Pack x1
Assembly Guide
Other Video
United States & Canada
- ePacket: $10
- DHL: $30
Europe
Germany, France, UK, Norway, Sweden, Denmark, Netherlands, Spain
- ePacket: $10
- DHL: $30
Australia & New Zealand
- ePacket: $10
- DHL: $30
Other Countries
- ePacket: $15
- DHL: $30
Notes
- Select DHL Express for the fastest delivery and a free extra spare arm per frame included.
- In some regions, DHL may not be available. We will automatically switch to EMS instead.
For more detailed information click here
The SF5 currently does not support O4 Pro installation. If you plan to use the O4 Pro, we recommend waiting for the upcoming version of SF5.
For those wanting to install the regular O4, we will soon release compatible 3D-printed accessories. Note that the O4's lens signal cable is too short for the SF5, so you'll need to use a third-party signal cable instead.
In the latest version we nixed the OG Air Unit setup, trimmed the overall length, beefed up the tail's structural strength, all while keeping the weight steady at 105 grams. For versions before March 2024, just swap out the top plate and main plate, and you're all set with the latest version！
The carbon fiber camera side plates in the package have all been replaced with new TPU side plates.

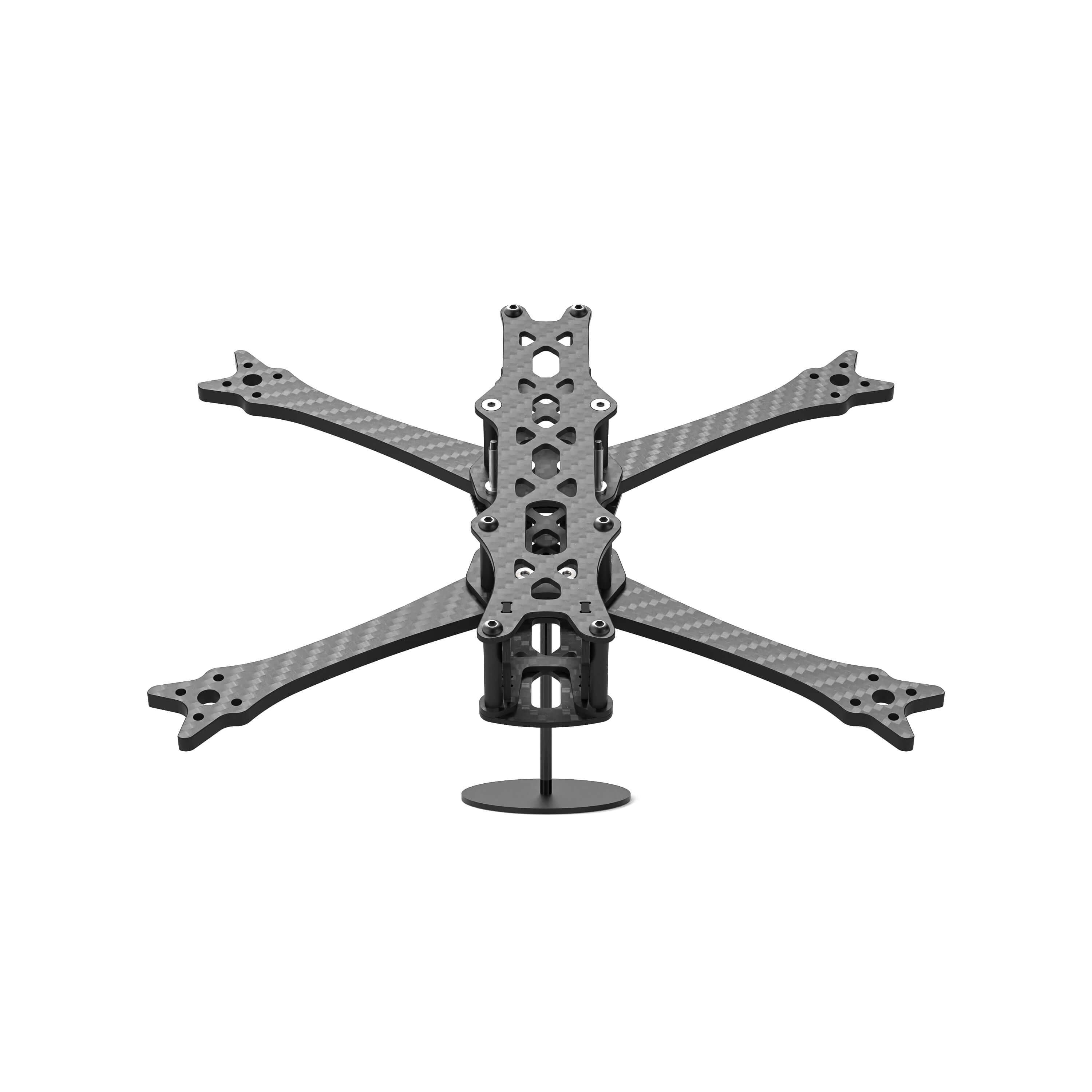

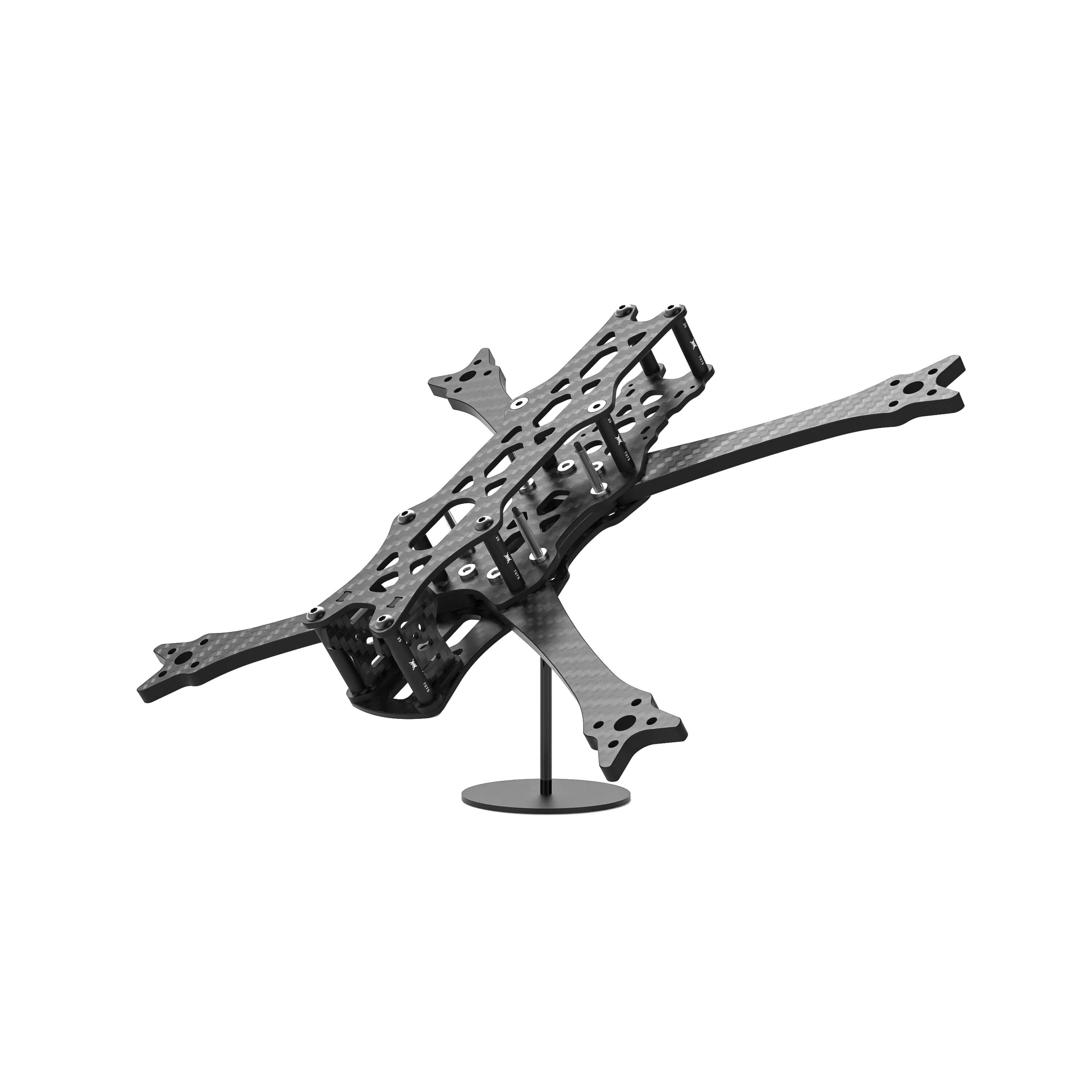

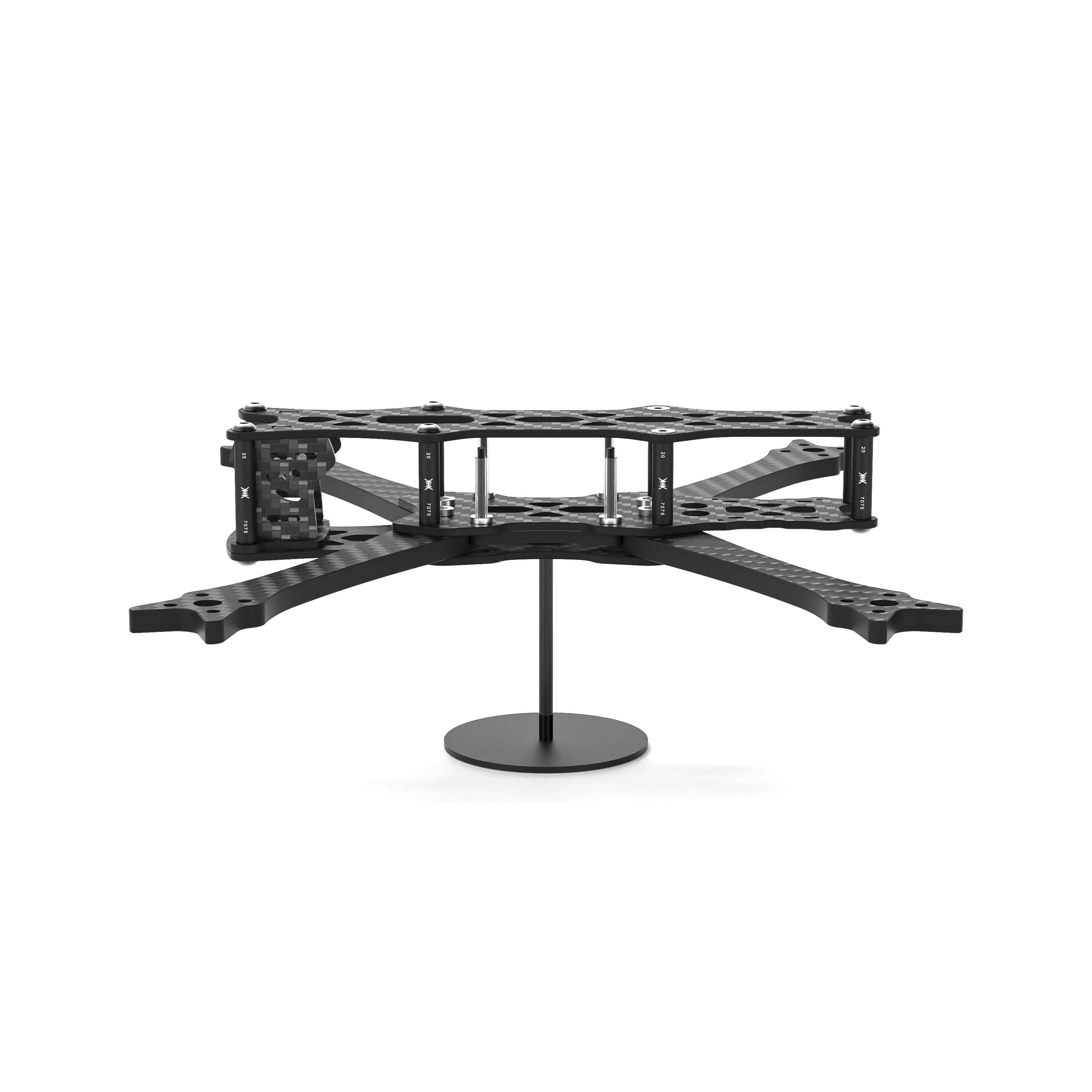

The Siren F5 Split is a 5" freestyle frame designed with a focus on lightweight and compatibility. Its improved thrust-to-weight ratio enhances the agility of thrust response during intense flight.
In the initial design, we aimed to fit the largest blade in the smallest wheelbase of only 233mm. When equipped with 4.9-5.1” props, it ensures efficient spacing between props for better control flexibility. It can even accommodate 5.5” props at maximum. We've also ensured ample equipment installation space at the rear of the frame, allowing for nearly all Vtx on the market to be installed.
We've used our most advanced C-Lock structure for easy arm replacement by removing just one bolt. This structure also adds to the frame's strength and tuning ease.
With the QUADMULA PS-3 profiled spacer, the GoPro mount can be securely affixed to the top plate without worrying about screw tightness or crushing the TPU.
The SF5 Split features a staggered bottom plate design that lowers the center of gravity, but it does require higher assembly skills.
