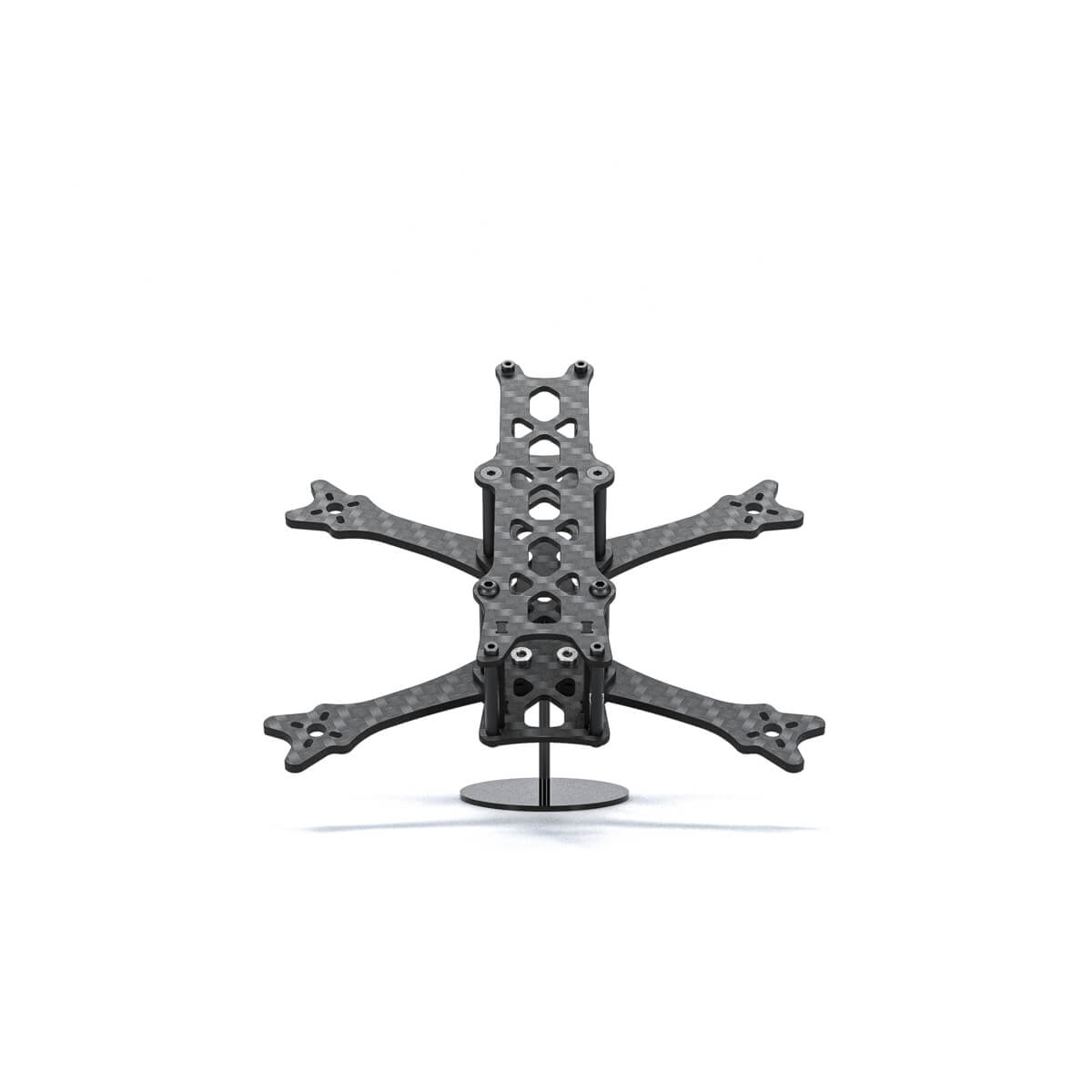

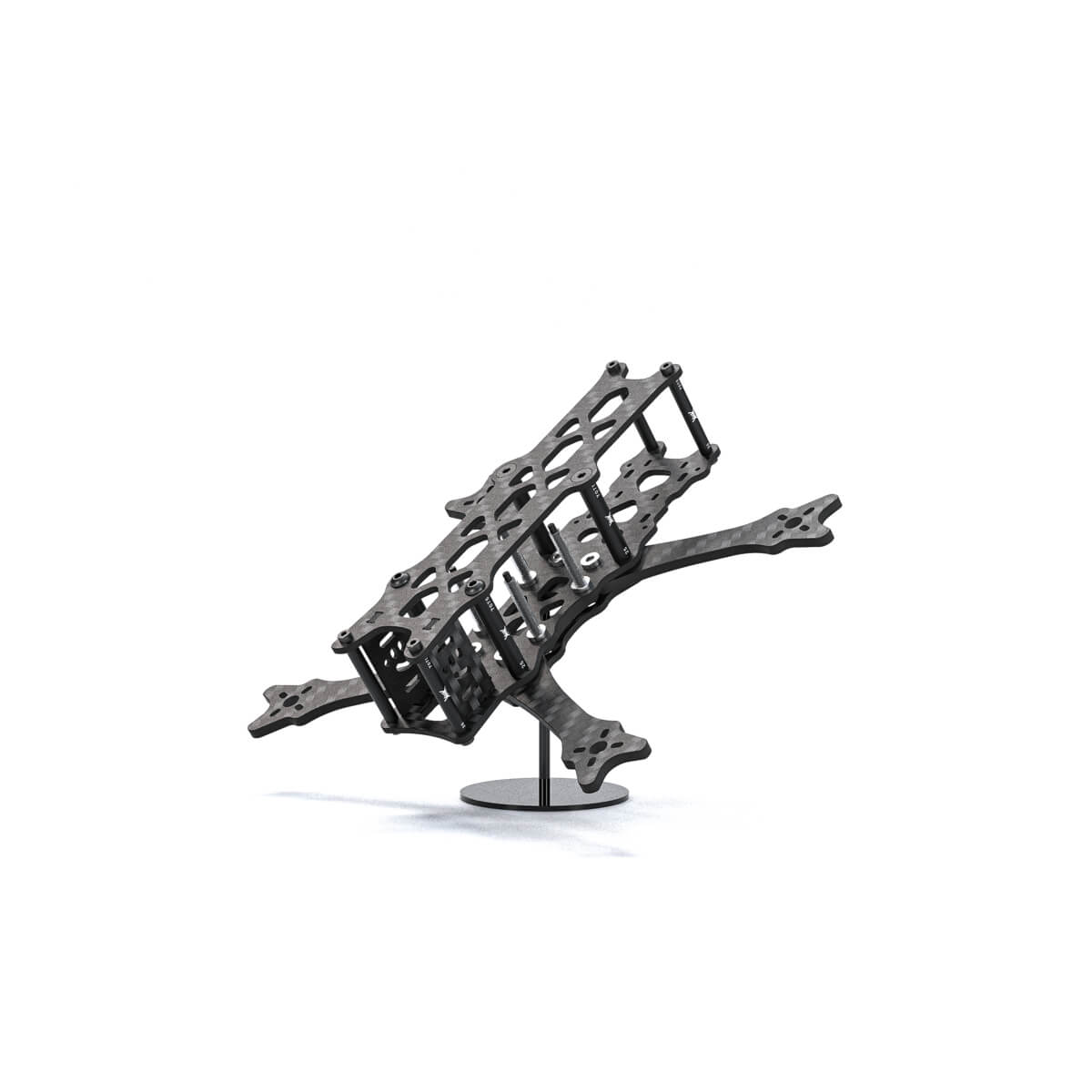

Siren F3

$46.00 USD

Siren F3 is a 3" freestyle frame that focuses on a lightweight and compatibility body. It has a better thrust-to-weight ratio, making the thrust response more agile during intense flight and cinematic shots.

At the initial design, we considered putting the structure of a 5” frame into a 3” body. Keeping the design of interchangeable arms and the sufficient space for equipment installation, Siren F3 fly much like a 5” frame but lighter and smaller.

In the meantime, we use the C-Lock structure which is our most advanced design. You can easily replace the arm by removing only one bolt. It also increases the strength of the frame and makes it easier to tune(Less filter, higher PID).

In addition, with QUADMULA PS-2 and PS-3 profiled spacer, the 3D prints TPU can be fixed more firmly on the plate. you no longer have to worry about the tightness of screws or crushing the TPU.

SF3 uses a one-piece main plate design, with all 25mm height columns. It allows ample space in the body making installation and maintenance easier.



*Arm Guard Set only for 12x12mm mount base motor

Weight 54.5g
Wheel Base 145mm
Frame Type Sqaushed X
Stack Mounting 20x20mm (M2/M3)
Camera Size Nano/Micro/DJI (14/19/20mm)
Motor Mounting 9x9mm / 12x12mm (M2)
Vtx Mounting 20x20 / 25.5x25.5
Support Prop Max 3.1inch
Standoff Height 25mm
Screw Material YFS 12.9 Class
Standoff / PS-3 Material 7075 Alloy

Carbon Fiber

  • Top Plate 2mm x1
  • Main Plate 2mm x1
  • Bottom Plate 2mm x1
  • Lock Plate 2mm x1
  • Arm 3mm x4
  • Cam Plate 2mm x2

Hardware

  • M2x3 Socket Head -4/pcs
  • M2x5 Button Head -16/pcs
  • M2x6 Socket Head -8/pcs
  • M2x25 Countersunk -4/pcs
  • M3x6 Button Head -2/pcs
  • M3x6 Countersunk -2/pcs
  • M3x8 Button Head -4/pcs
  • M3x12 Countersunk -4/pcs
  • M2x25 7075 Standoff - 4/pcs
  • M3x25 7075 Standoff - 4/pcs

Accessories

  • Capacitor Mount x1
  • Antenna Mount x1
  • TPU M2 Nuts x4
  • Rubycon 35v470uF ZLH x1
  • Damping Tube x1
  • Battery Pad x1
  • Battery Strap x2
  • Backup Screw Pack x1
