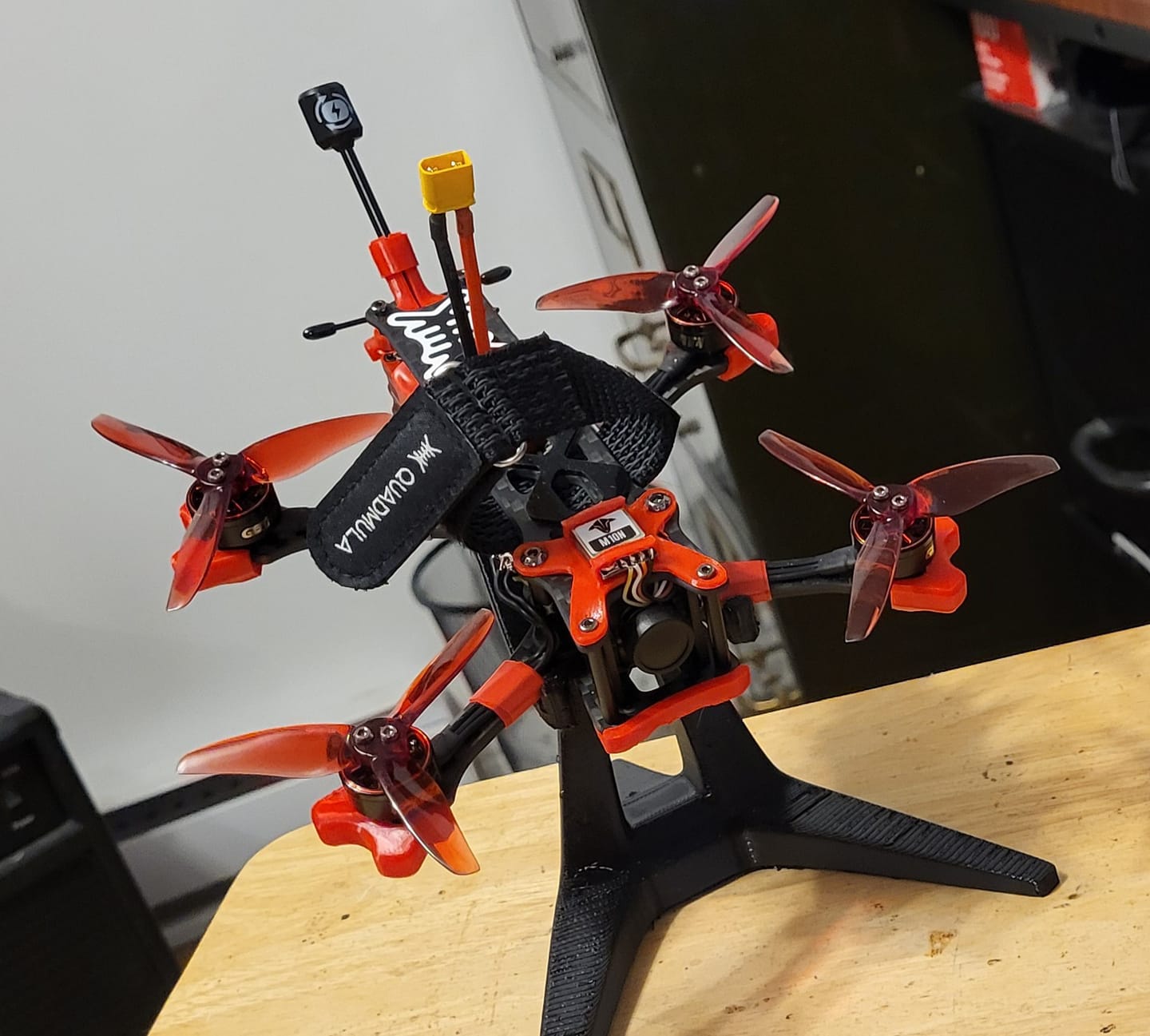

Siren F3 Split
| Weight | 54.2g |
| Wheel Base | 145mm |
| Frame Type | Sqaushed X |
| Stack Mounting | 20x20mm (M2/M3) |
| Camera Size | Nano/Micro/DJI (14/19/20mm) |
| Motor Mounting | 9x9mm / 12x12mm (M2) |
| Vtx Mounting | 20x20 / 25.5x25.5 |
| Support Prop | Max 3.1inch |
| Standoff Height | 20/25mm |
| Screw Material | YFS 12.9 Class |
| Standoff / PS-3 Material | 7075 Alloy |
Carbon Fiber
- Top Plate 2mm x1
- Front Plate 2mm x1
- Rear Plate 2mm x1
- Lock Plate 2mm x1
- Arm 3mm x4
- Cam Plate 2mm x2
Hardware
- M2x3 Socket Head -4/pcs
- M2x5 Button Head -16/pcs
- M2x6 Socket Head -8/pcs
- M2x22 Countersunk -4/pcs
- M3x6 Button Head -2/pcs
- M3x6 Countersunk -2/pcs
- M3x8 Button Head -4/pcs
- M3x12 Countersunk -4/pcs
- M2x20 7075 Standoff - 2/pcs
- M2x25 7075 Standoff - 2/pcs
- M3x20 7075 Standoff - 4/pcs
Accessories
- Capacitor Mount x1
- Antenna Mount x1
- TPU M2 Nuts x4
- Rubycon 35v470uF ZLH x1
- Damping Tube x1
- Battery Pad x1
- Battery Strap x1
- Backup Screw Pack x1
Siren F3 Split is a 3" freestyle frame that focuses on a lightweight and compatibility body. It has a better thrust-to-weight ratio, making the thrust response more agile during intense flight and cinematic shots.
At the initial design, we considered putting the structure of a 5” frame into a 3” body. Keeping the design of interchangeable arms and the sufficient space for equipment installation, Siren F3 Split fly much like a 5” frame but lighter and smaller.
In the meantime, we use the C-Lock structure which is our most advanced design. You can easily replace the arm by removing only one bolt. It also increases the strength of the frame and makes it easier to tune(Less filter, higher PID).
In addition, with QUADMULA PS-2 and PS-3 profiled spacer, the 3D prints TPU can be fixed more firmly on the plate. you no longer have to worry about the tightness of screws or crushing the TPU.
SF3 Split uses a staggered bottom plate design which results in a lower center of gravity, but also requires higher assembly skills.
