Siren F5 S2
Weight 106.9g* Wheel Base 233mm Frame Type Sqaushed X Stack Mounting 30.5x30.5mm (M2/M3) Camera Size DJI O4 Pro / DJI O3 Motor Mounting 16x16mm (M3) Vtx Mounting 20x20(M2)/ 25.5x25.5(M2) Support Prop Max 5.2inch Standoff Height 20/25mm
*The theoretical value may deviate slightly from the actual value, including the camera plate and stack screw.
Carbon Fiber
- Top Plate - 2mm x1
- Front Plate - 2mm x1
- Rear Plate - 2mm x1
- Lock Plate - 3mm x1
- Arm - 5mm x4
- Top Front Plate - 2mm x1
Hardware
- M2x6 Countersunk -4/pcs
- M2x23 Countersunk -4/pcs
- M3x6 Button Head -4/pcs
- M3x8 Button Head -20/pcs
- M3x6 Countersunk -2/pcs
- M3x10 Countersunk -4/pcs
- M3x14 Countersunk - 8/pcs
- PS-2 Profiled Spacer - 4/pcs
- PS-3 Profiled Spacer - 4/pcs
- M3x20 7075 Standoff - 6/pcs
- M3x25 7075 Standoff - 2/pcs
Accessories
- TPU Camera Side Plate x2
- TPU Action Cam Mount x1
- TPU Capacitor Mount x1
- TPU Antenna Mount x1
- TPU M2 Nuts x4
- Rubycon 35v1000uF ZLH x2
- Damping Tube x2
- Battery Pad x1
- Battery Strap x2
- Backup Screw Pack x1
United States & Canada
- ePacket: $10
- DHL: $30
Europe
Germany, France, UK, Norway, Sweden, Denmark, Netherlands, Spain
- ePacket: $10
- DHL: $30
Australia & New Zealand
- ePacket: $10
- DHL: $30
Other Countries
- ePacket: $15
- DHL: $30
Notes
- Select DHL Express for the fastest delivery and a free extra spare arm per frame included.
- In some regions, DHL may not be available. We will automatically switch to EMS instead.
For more detailed information click here

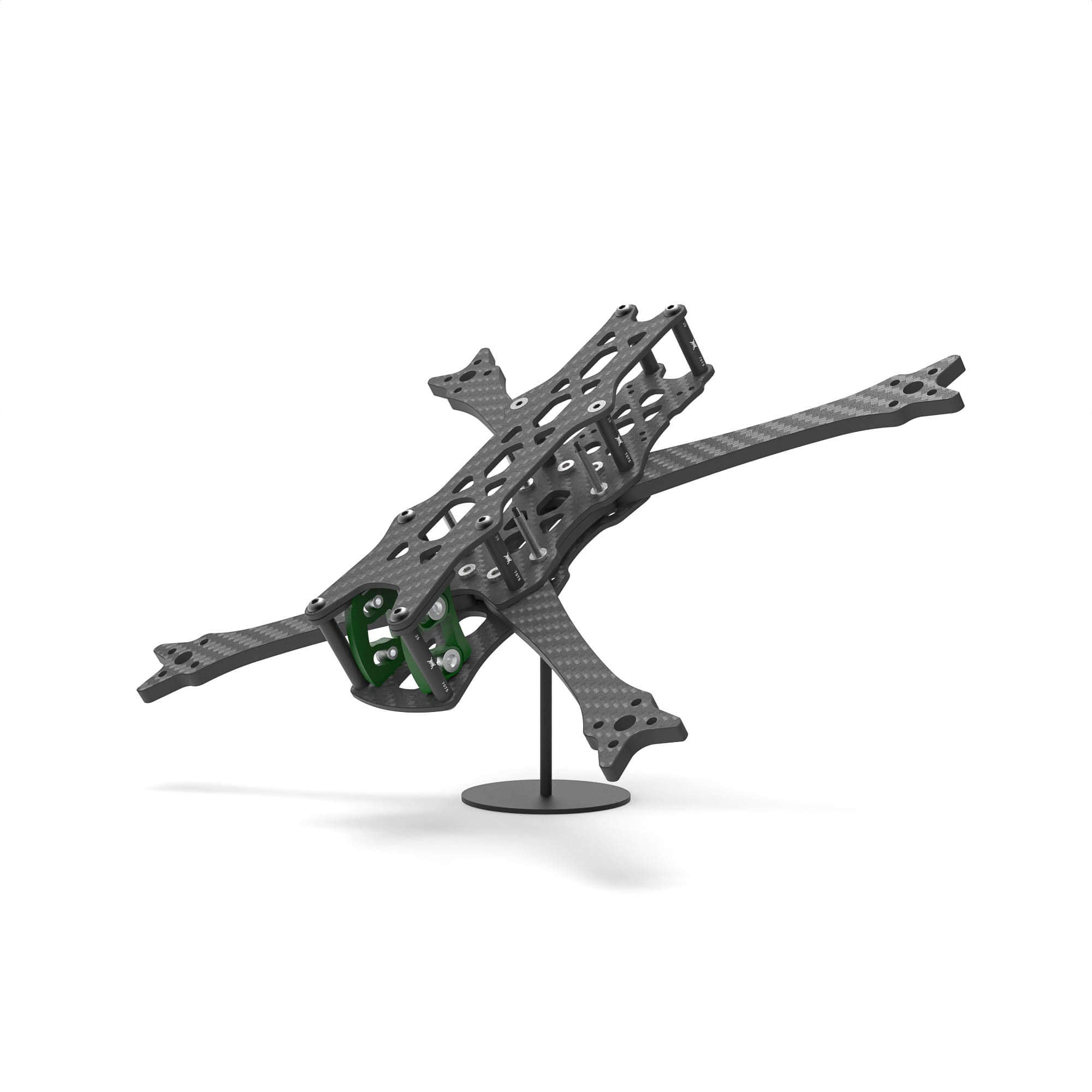

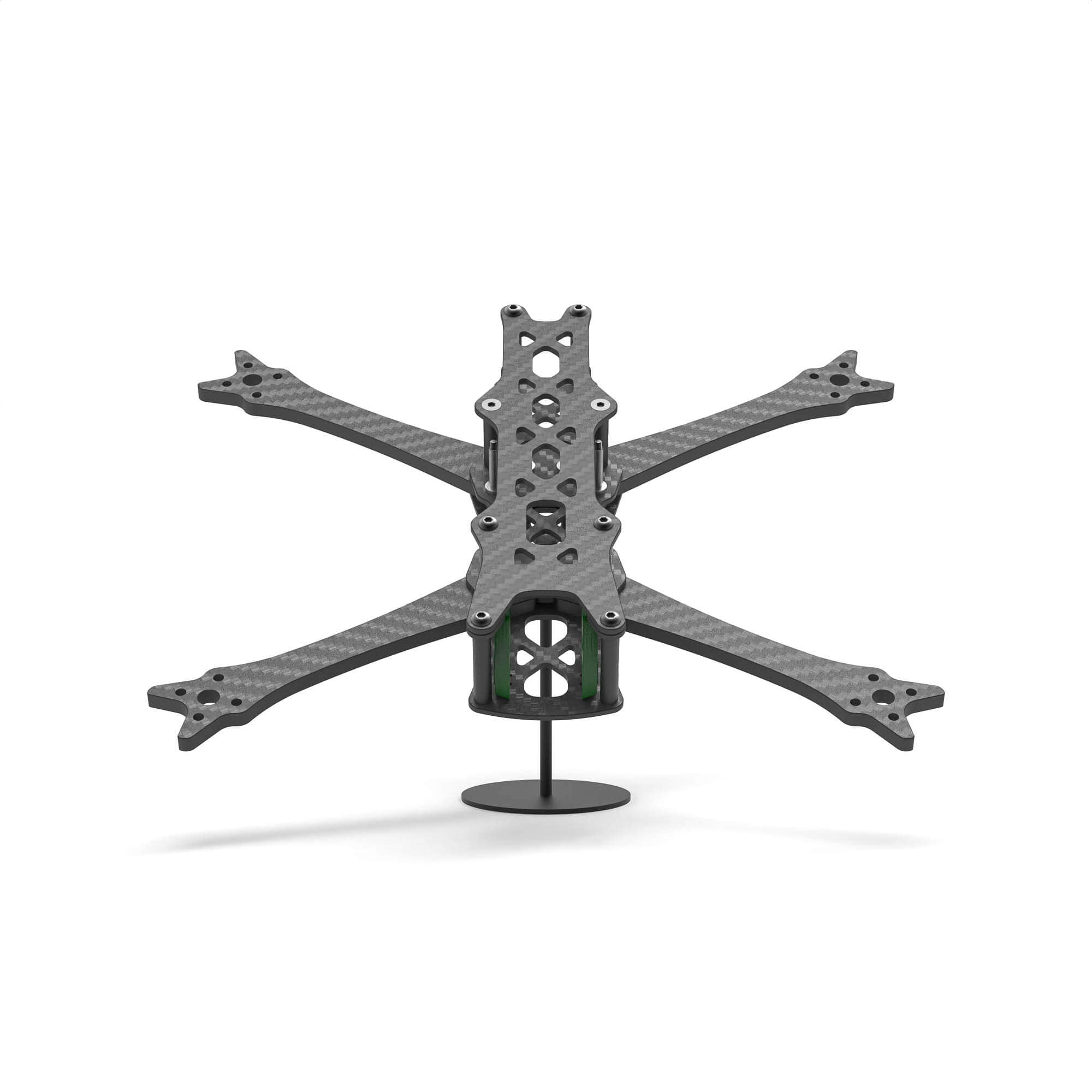

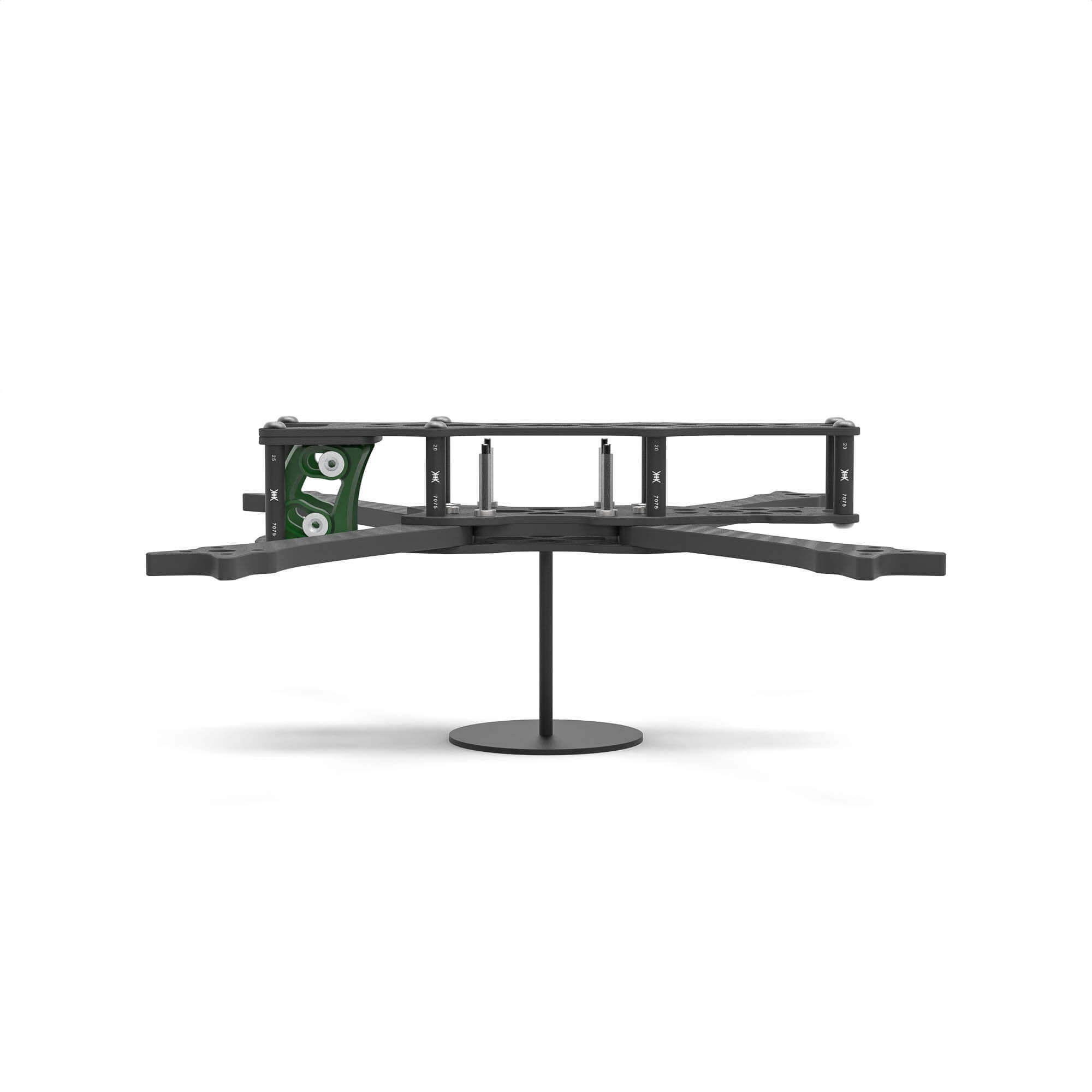

The Siren F5 S2 is the latest evolution of our popular 5" freestyle frame, optimized for modern FPV standards while maintaining the lightweight agility pilots love.
Designed to fully support the latest DJI O4 Pro system, the F5 S2 features a reinforced front-end structure for better durability and crash protection. Its redesigned camera mount and top plate provide an unobstructed FPV view without any frame interference.
Like its predecessor, the F5 S2 retains a compact 233mm wheelbase, with optimal prop-to-prop spacing for precise control and maneuverability. It comfortably accommodates 4.9–5.2" props.
The frame provides generous rear space for mounting any VTX unit on the market. Our proven C-Lock arm system continues to deliver single-bolt, tool-free arm replacement while enhancing structural integrity and tuning stability.
The QUADMULA PS-3 profiled spacer ensures secure mounting of the action cam and TPU parts without stress on components—ideal for confident flying and clean builds.
Thanks to its staggered bottom plate design that maintains a low center of gravity, the Siren F5 S2 delivers premium performance for pilots seeking strength, clarity, and precision—now with full next-generation digital compatibility.
